CGDI MONSTER G08 Calibration & Software Update Guide

 This guide explains how to complete the initial setup of the CGDI MONSTER G08 Key Cutting Machine. It covers the required calibration procedures and the online software upgrade process for first-time use.

Follow the instructions below to perform fixture offset detection, fixture calibration, tool changer height leveling, connect the machine to Wi-Fi, and install the latest software version.

Fixture Offset Detection

1. Click Device Parameters on the Home page.
2. Click Fixture Offset Detection on the Device Parameters
3. For T5 Fixture Offset Detection, follow the on-screen instructions to replace the T5 fixture, keeping Side A facing upward, then click Start to begin the calibration procedure.

Fixture Calibration

1. On the Home page, click Machine Parameters.
2. On the Machine Parameters page, click Fixture Calibration.
3. Turn the fixture to Side A, place a HON66 key blank, lock the fixture, and click Start.
4. After calibration is complete, remove the key blank, rotate the fixture to Side B, and click Continue.
5. When calibration is complete, click Finish.

Tool Changer Height Leveling

1. On the Home page, click Device Parameters.
2. Select Tool Changer Height Leveling.
3. Follow the on-screen instructions to replace and lock the T5 fixture, then click Start.
4. After the machine stops, adjust the milling cutter and probe until both indicators turn green.
5. Lock the milling cutter and probe, then click Exit.
6. Select the required milling cutter diameter and click Set and Exit to complete the setup.

Online Upgrade

Wi-Fi Connection

1. On the Home page or Version Update page, click the Wi-Fi
2. Follow the on-screen instructions to connect to a Wi-Fi network. Once connected, the Wi-Fi indicator will display the connected status.

Software Online Upgrade

1. On the Home page, click Update.
2. If a new software version is available, the version information will be displayed in red. If not, the machine is already running the latest version.
3. Click Update, then click Yes in the confirmation dialog to download and install the latest version.

FAQ

Do I need to calibrate the CGDI MONSTER G08 before first use?

Yes. The initial calibration should be completed before using the machine. This includes fixture offset detection, fixture calibration, and tool changer height leveling.

Which fixture is used during the initial calibration?

The T5 fixture is used for fixture offset detection and tool changer height leveling. Follow the on-screen instructions during each procedure.

Which key blank is required for fixture calibration?

Use a HON66 key blank during the fixture calibration procedure.

How do I know when tool changer height leveling is complete?

When both the milling cutter and probe indicators turn green, lock them in place and complete the procedure.

How do I update the CGDI MONSTER G08 software?

Connect the machine to Wi-Fi, open Update, and install the available software version. If no update is shown, the machine is already running the latest version.

www.obdexpress.co.uk

LAUNCH X431 XPROG5 vs. XPROG3: How to Choose?

 If you are running a modern diagnostic shop, you’ve likely run into a wall recently trying to program keys or clone modules on newer European cars. Maybe it was a newer VW with an RH850 dash, or a Mercedes-Benz requiring FBS4 transmission cloning. If you were using the older Launch X-PROG3, you probably had to turn that customer away.

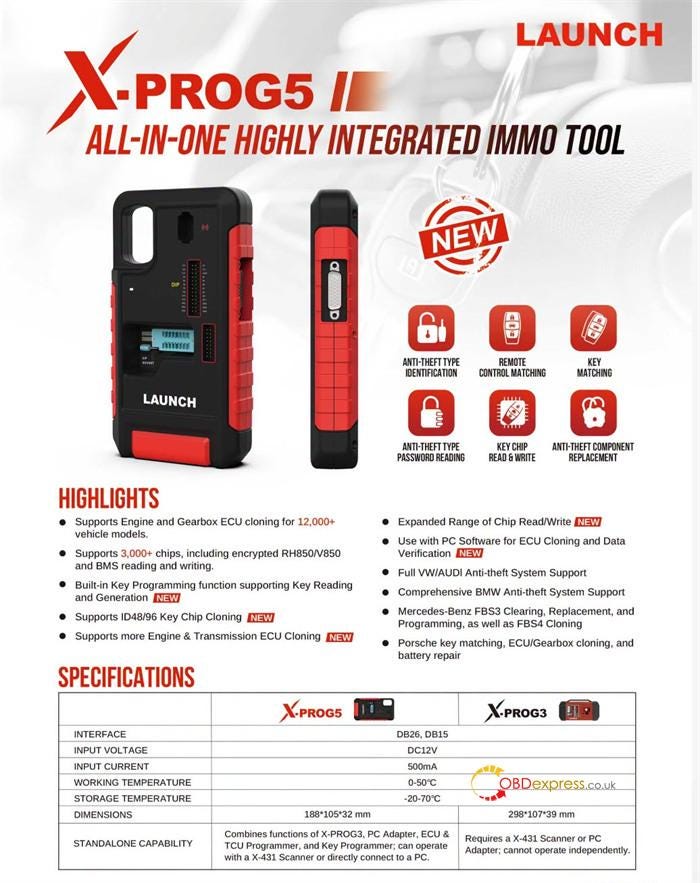

That is exactly why Launch released X431 X-PROG 5 (G5) Immobilizer Programmer. It is designed as a professional 3-in-1 tool specifically targeted at solving the biggest headaches in European vehicle locksmithing and module cloning.

Let’s look at the real-world differences between X-PROG 3 and the new X-PROG 5, and see why G5 is a must-have for your bench.

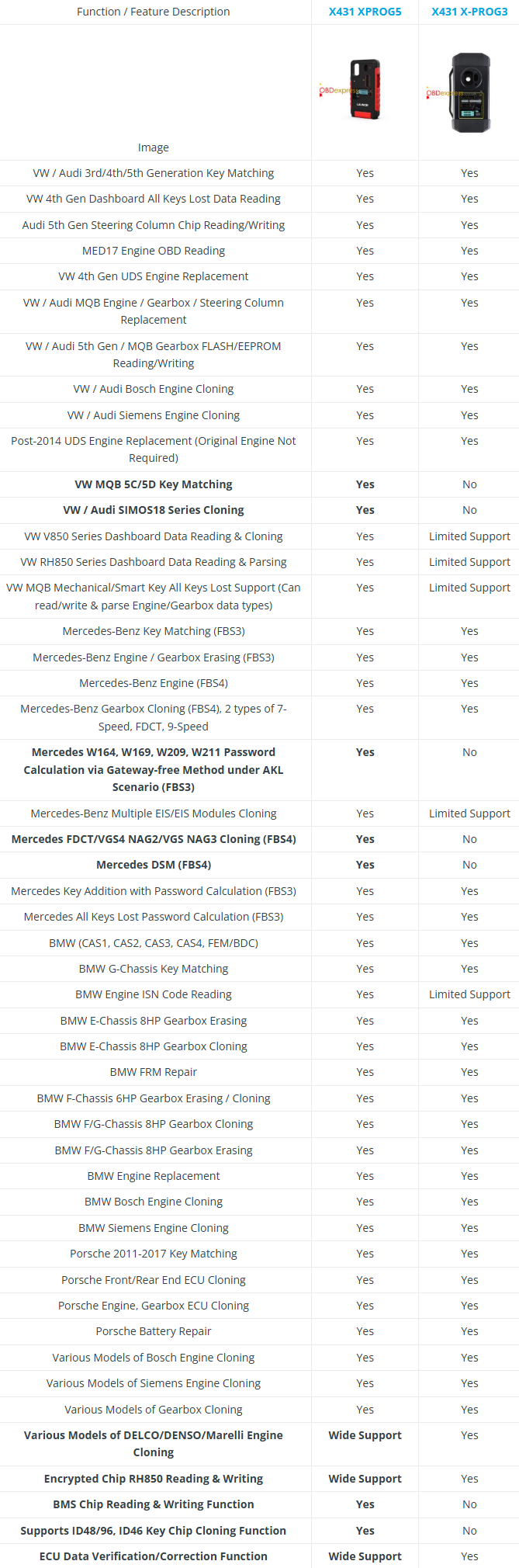

Launch X-PROG 5 and X-PROG 3 Comparison Table:

What makes Launch G5 a true "3-in-1" Powerhouse?

Instead of carrying three separate tools for key generating, tablet-based IMMO programming, and PC-based ECU flashing, G5 packs everything into one streamlined workflow:

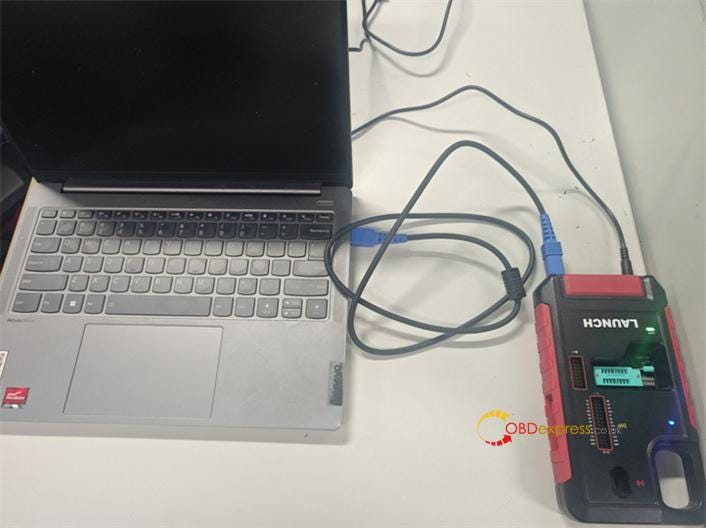

• ECU/TCU PC Tool: Use dedicated built-in PC software for heavy-duty chip reading and writing.

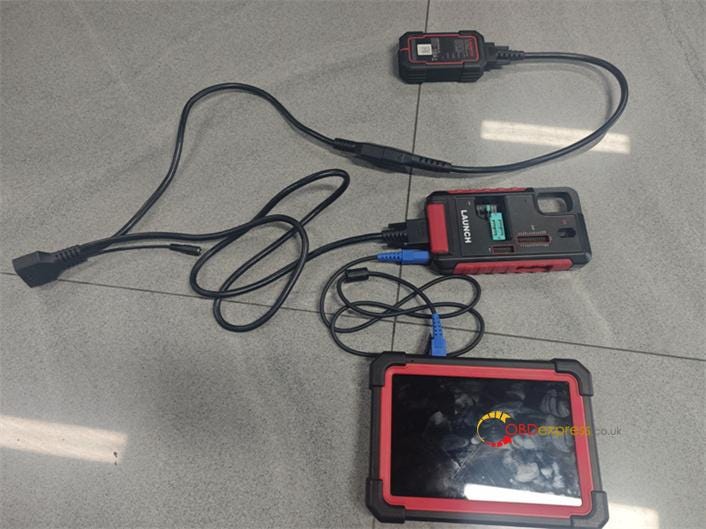

• IMMO PROG (Tablet Interface): Do quick key matching and module adaptation directly on your Launch X431 diagnostic tablet (like X431 PAD VII Elite, PAD V ELITE, PAD IX, PRO3 V+ ELITE/ PRO3S+ ELITE, IMMO Plus, IMMO Elite, CRP919XBT/CRP919EBT).

• Key Programmer Hardware: Read, generate, and unlock key data directly on the tool.

Real Bench Differences: Where X-PROG 3 Fails and X-PROG 5 Wins

Dealing with Volkswagen & Audi (VAG Group)

• X-PROG 3 Limitation: If a customer brings in a newer VW with a V850 or RH850 instrument cluster, or needs an MQB All Keys Lost (AKL) solution, X-PROG 3’s coverage is either incomplete or completely missing.
• X-PROG 5 Solution: G5 gives you full data reading, parsing, and cloning capabilities for RH850/V850 dashboards and fully handles MQB 5C/5D key matching. It also natively supports cloning complex SIMOS18 engines — a massive plus for performance shops. Plus, with recent software updates, it now supports adding keys for the ultra-secure Audi MLB platform.

Breaking through Mercedes-Benz Security

• X-PROG 3 Limitation: Completely locked out of advanced Mercedes FBS4 gearbox cloning.
• X-PROG 5 Solution: The G5 dominates FBS4 architecture. You can now effortlessly clone Mercedes FDCT, VGS4 NAG2, VGS NAG3 gearboxes, and DSM modules. For older FBS3 models (like W164 or W211), the G5 features a gateway-free password calculation method for All Keys Lost scenarios, saving you from complex wiring setups.

Expanded Hardware Capabilities

The upgrades aren’t just software patches; G5 features completely overhauled hardware. It includes a dedicated module for Battery Management System (BMS) chip reading and writing, and allows you to clone ID46 and ID48 transponder chips directly. If you work on BMWs, you’ll also notice a massive jump in stability when reading newer Engine ISN codes.

Final Thoughts: Is it worth the switch?

If your shop rarely sees European vehicles newer than 2018, Launch X431 X-PROG3 Programmer might still get you by. But if you want to stay competitive, maximize your efficiency, and accept highly profitable jobs on the VAG MLB/MQB platforms and Mercedes FBS4 systems, Launch X431 X-PROG5 IMMO Programmer is the tool that will future-proof your business.

www.obdexpress.co.uk

How to Check KEYDIY Device Vehicle Coverage before Buying?

 When investing in new automotive key programming and remote generation hardware, coverage is everything. A common question locksmiths and diagnostic technicians ask before pulling the trigger is:

"Can I download the KEYDIY app to check supported vehicle models before actually purchasing the device, or do I need to buy and bind the device first to see this information?"

The short answer is no, you do not need to bind a device first. KEYDIY allows complete transparency before you spend a dime.

Here is exactly how you can verify if KD-MAX or KD-X4 supports your specific vehicle models before making a purchase.

Key Takeaway: No Device Binding Required

You can view all vehicle and remote compatibility details completely free of charge. Binding a physical device is absolutely not required to access this information. You simply need to download the official mobile applications to audit the coverage database.

How to Check KD-MAX Supported Models & Functions

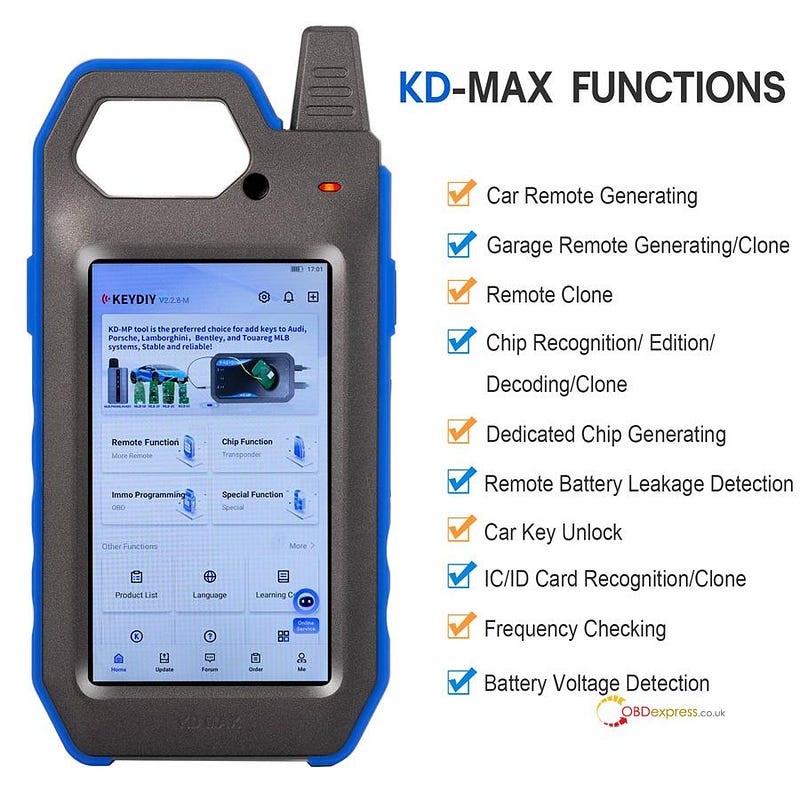

KEYDIY KD-MAX is a premier handheld smart device designed primarily for remote generation, chip cloning, and smart key customization.

If you want to check which vehicle models KD-MAX supports for remote functions:

• The Solution: Download the "Mobile KD" app from the Google Play Store or Apple App Store.
• What you can see: Inside the app, you can freely browse the entire remote generation database to check exactly which vehicle makes, models, years, and button configurations are supported.

Looking for Transponder Programming? Meet KD-X4

While KD-MAX excels at remote generation, if your primary goal is dealing with advanced on-board diagnostic (OBD) vehicle programming and key pairing capabilities, your workflow requires a different tool.

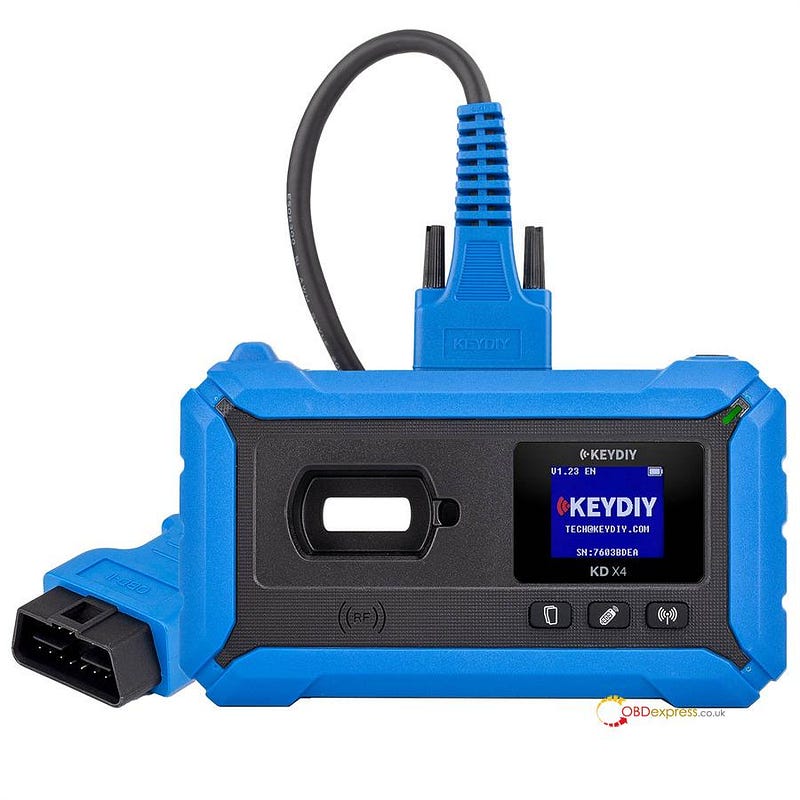

• Our Recommendation: We highly suggest looking into KEYDIY KD-X4 for dedicated programming/pairing tasks.

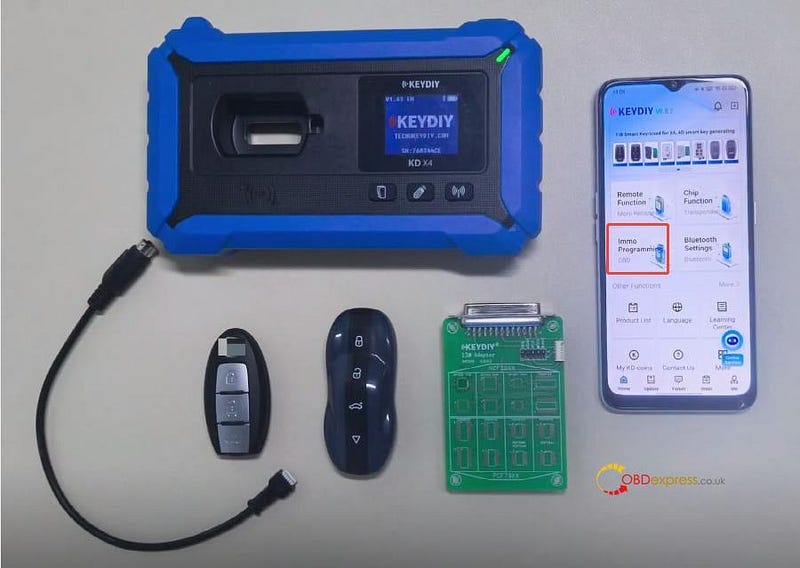

• How to check coverage: Download the corresponding software app and navigate directly to the [IMMO Programming] function menu. From there, you can view the complete, live list of supported vehicle IMMO systems and pairing protocols without needing a registered serial number.
