Yanhua Module 39 is specially designed for Mercedes-Benz MB HU7 instrument module (A206/A223/A177) equipped with chip model R7F7015293/R7F7015294 mileage correction on bench. It’s compatible with Yanhua ACDP1/ACDP2.
Which BENZ car models are supported?
- S-Class (W223)
- C-Class (W206 / S206 / V206 / X206)
- AMG (192 / X290)
- A-Class (W177)
- B-Class (W243 / W247)
- CLA (C118 / W118)
- CLE (A236 / C236)
- EQA (H243)
- EQB (X243)
- EQE (V294)
- EQS (V297)
- GLA (H247)
- GLB (X247)
- GLC (C254 / X254)
- GLE (V167)
- GLS (X167)
- CLS (W257)
- SL (232)
Which instrument modules are supported?
- A206
- A177
- A223
ACDP APP Menu Path:

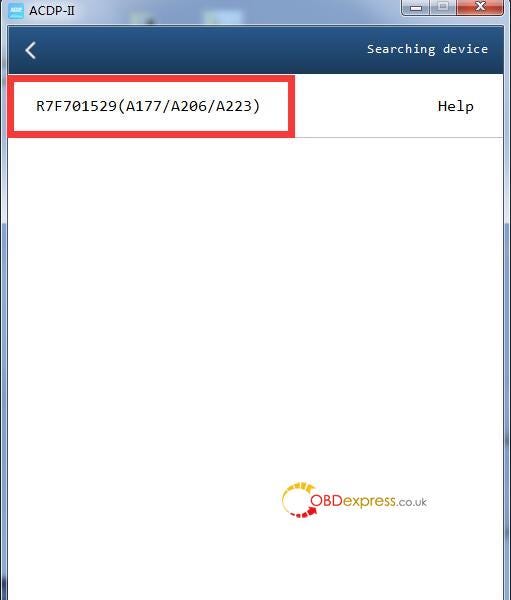

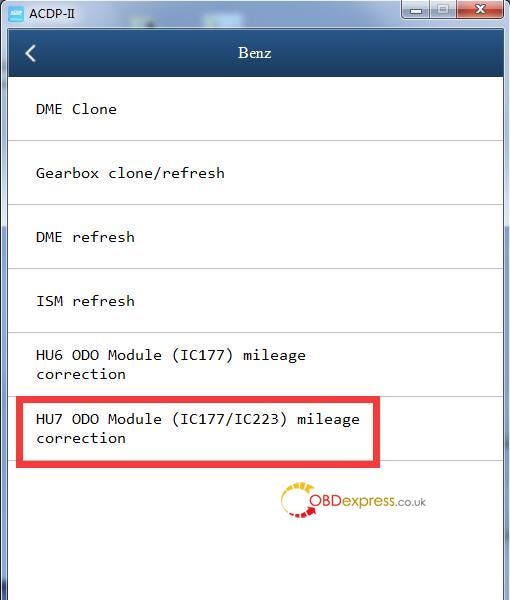

Select Benz-> HU7 ODO Module (IC177/IC223) mileage correction-> R7F701529 (A177/A206/A223)

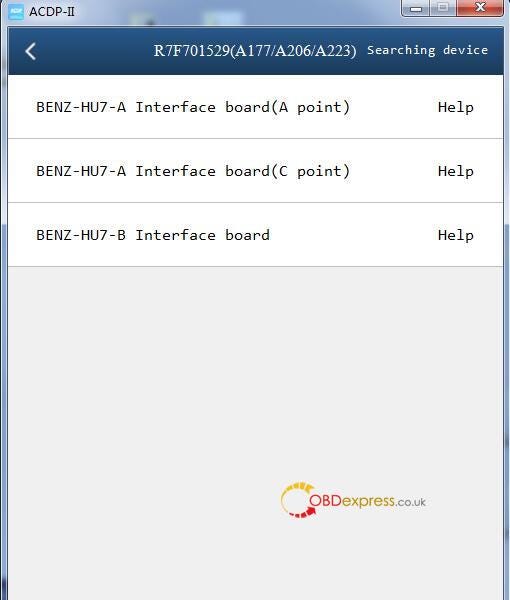

Select the corresponding interface board according to the dashboard type.
- BENZ-HU7-A Interface board (A point)
- BENZ-HU7-A Interface board (C point)
- BENZ-HU7-B Interface board

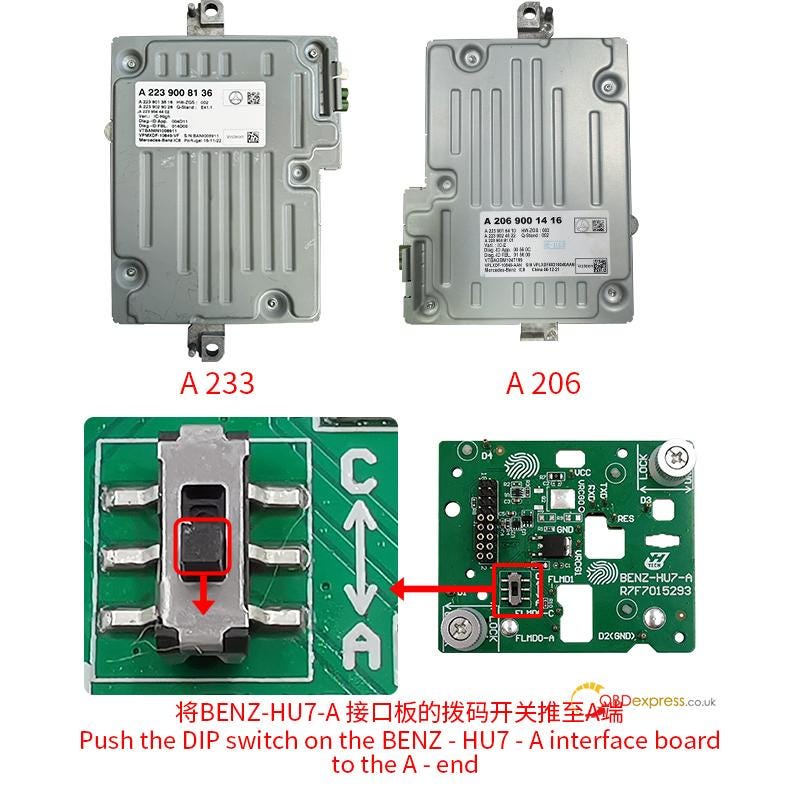

BENZ-HU7-A Interface board (A point)- for A223 and A206 with R7F7015293 chip
(need to push the DIP switch on the BENZ-HU7-A interface board to the A-end)

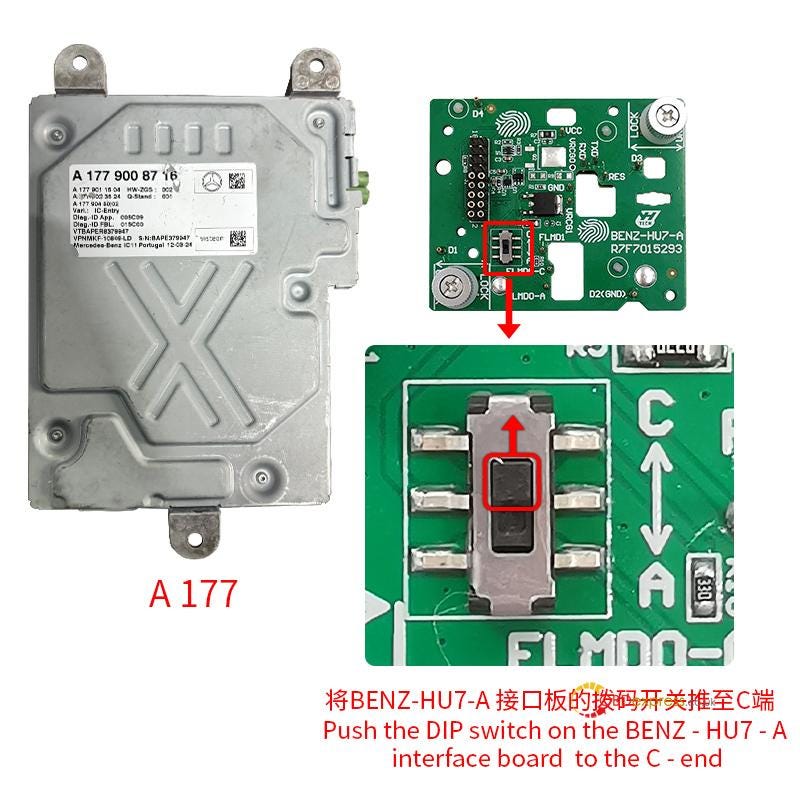

BENZ-HU7-A Interface board (C point)- for A177 with R7F7015293 chip
(need to push the DIP switch on the BENZ-HU7-A interface board to the C-end)

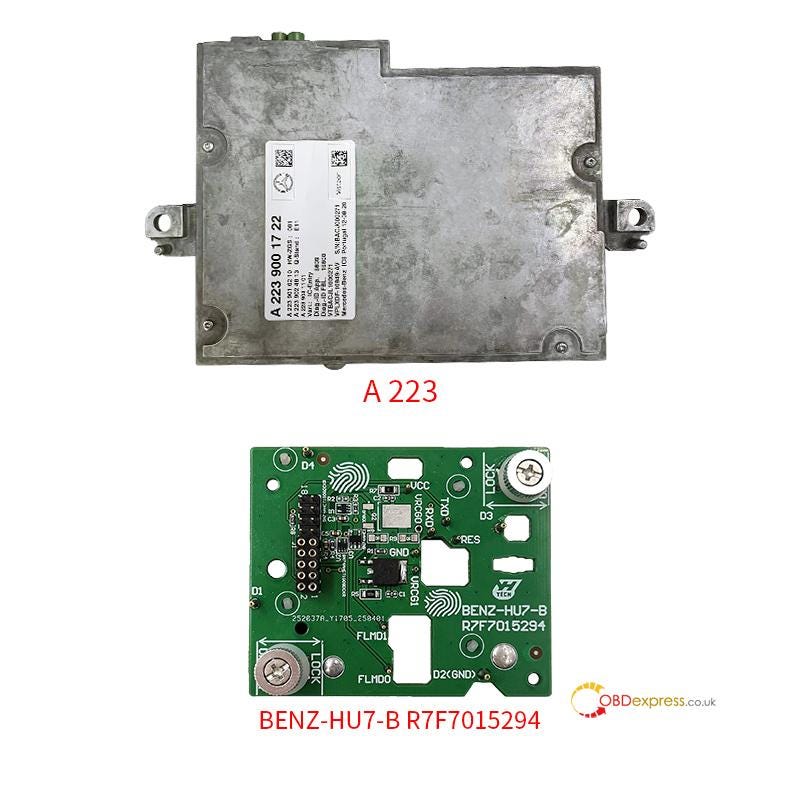

BENZ-HU7-B Interface board- for A223 with R7F7015294 chip

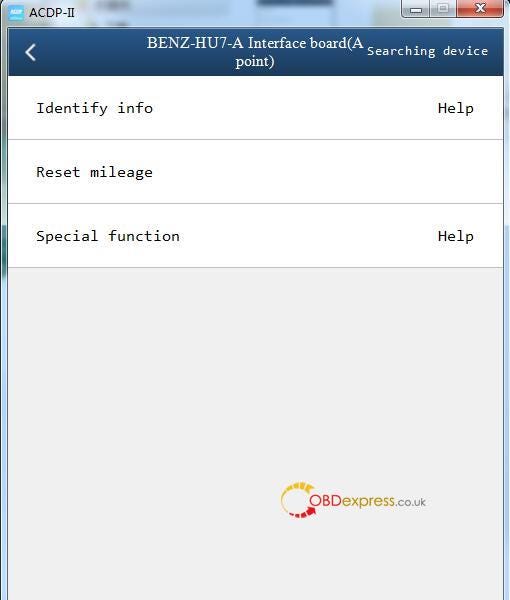

Reset mileage steps:
1.Identify info.

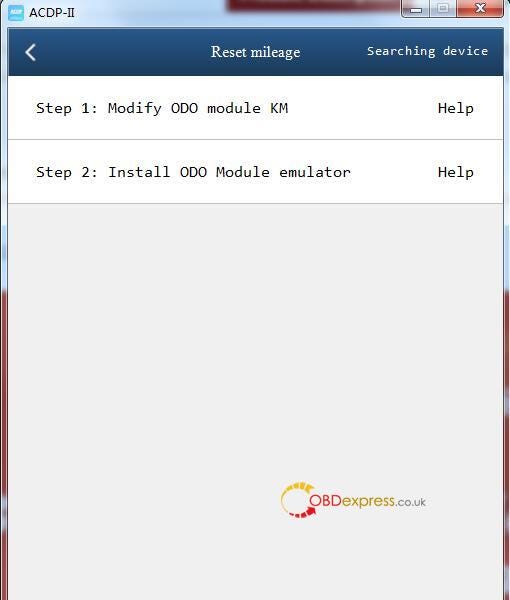

2.Reset mileage
Step 1: Modify ODO Module KM
Step 2: Install ODO Module emulator
Yanhua ACDP Module 39:
https://www.obdexpress.co.uk/wholesale/yanhua-acdp-module39-mb-hu7-mileage-correction.html
