Programming a replacement key on a 2016 Lincoln MKX when all keys are lost requires overriding the vehicle’s factory alarm. Lonsdor K518 Pro key programmer, combined with the Lonsdor Ford AKL Bypass Cable, streamlines IMMO backup and PATS synchronization without alarm interference.
Operation Guide:
Step 1: Pre-Code the Transponder Keys
Power on K518 Pro tablet
Select Generate smart key > LINCOLN > MKX > 2009–2016 ID49 868

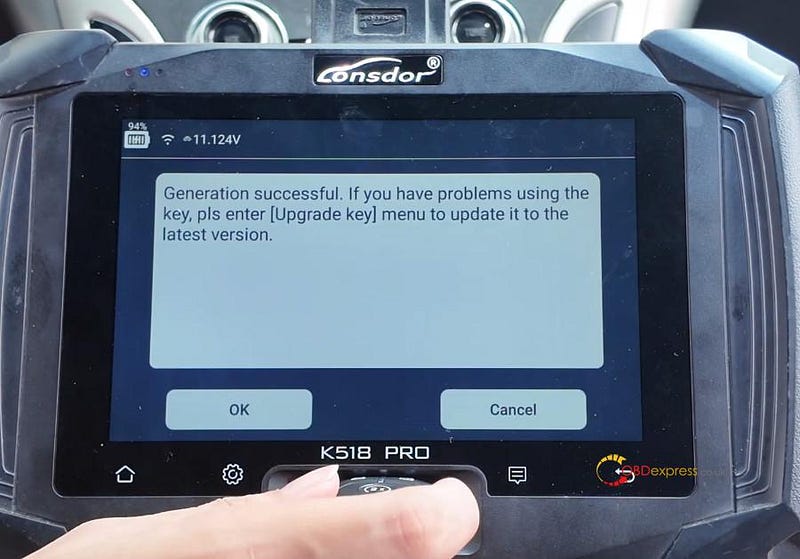

Place a blank key into the device key slot and press Generate
Step 2: Connect the Bypass Harness and Backup IMMO

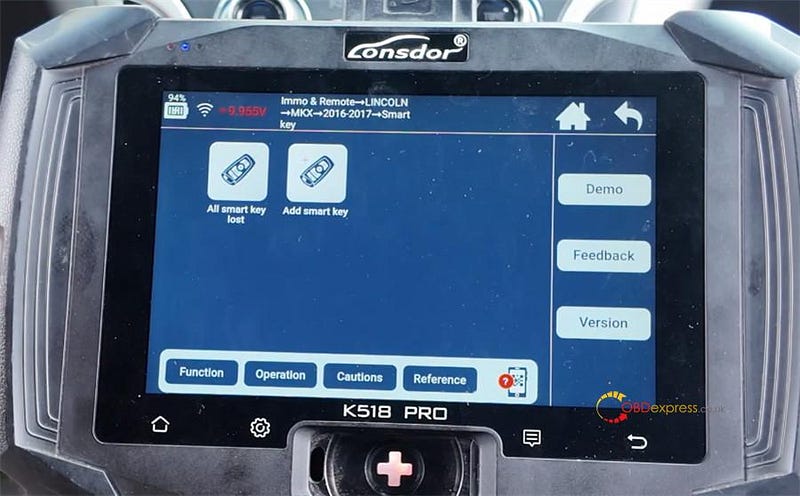

Select Immo & Remote > LINCOLN > MKX > 2016–2017 > Smart Key > All smart key lost

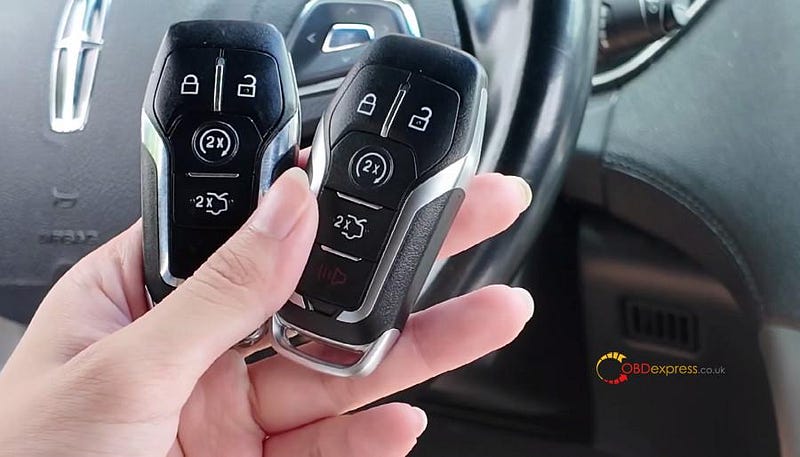

Ensure two smart keys are prepared.
Turn off the ignition, then open and close the driver door.

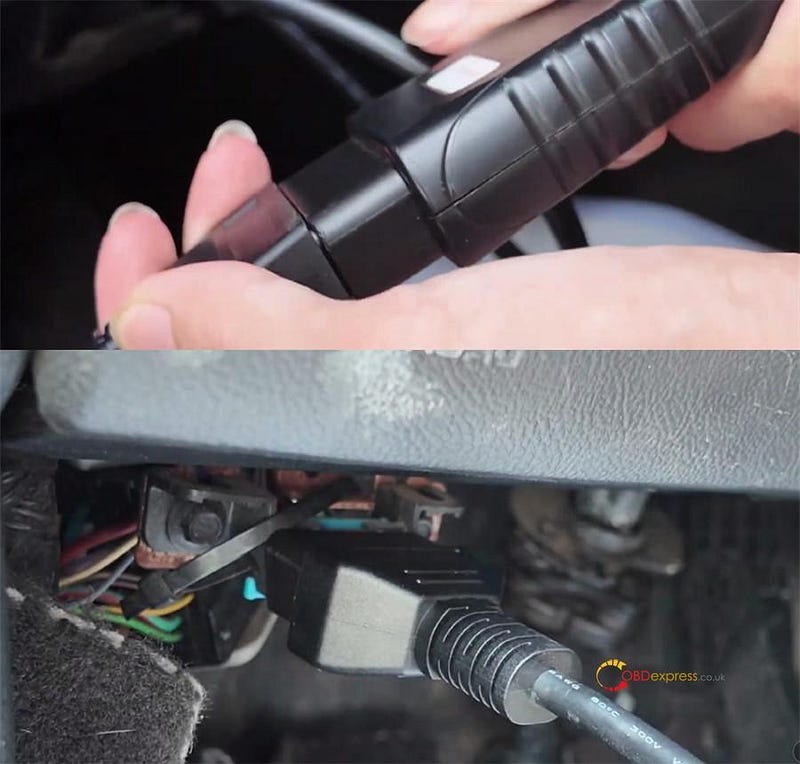

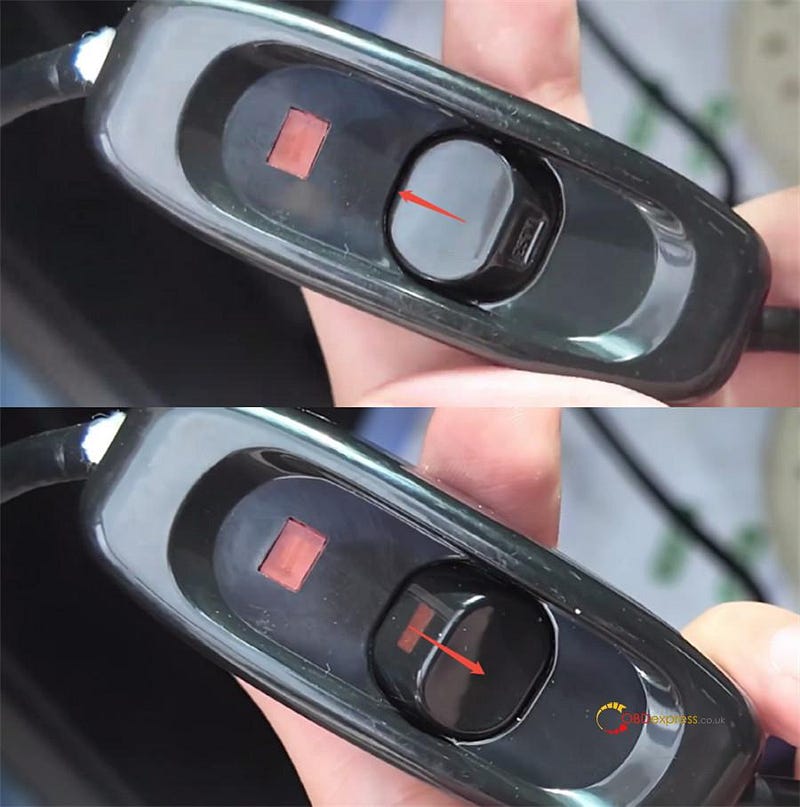

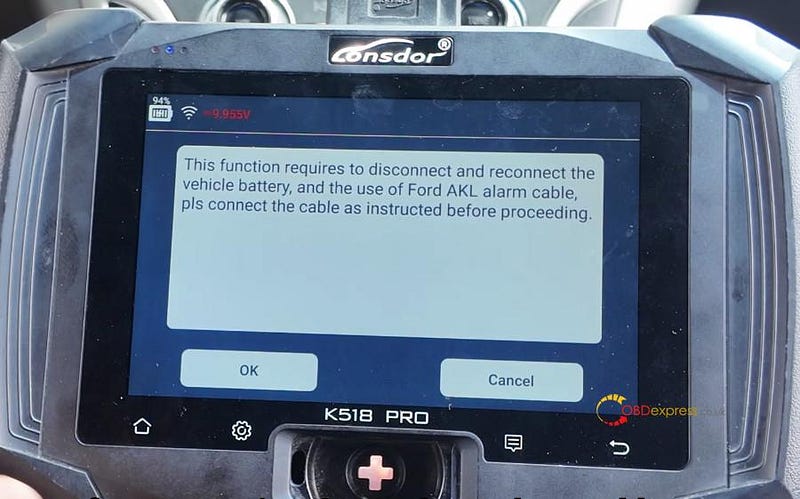

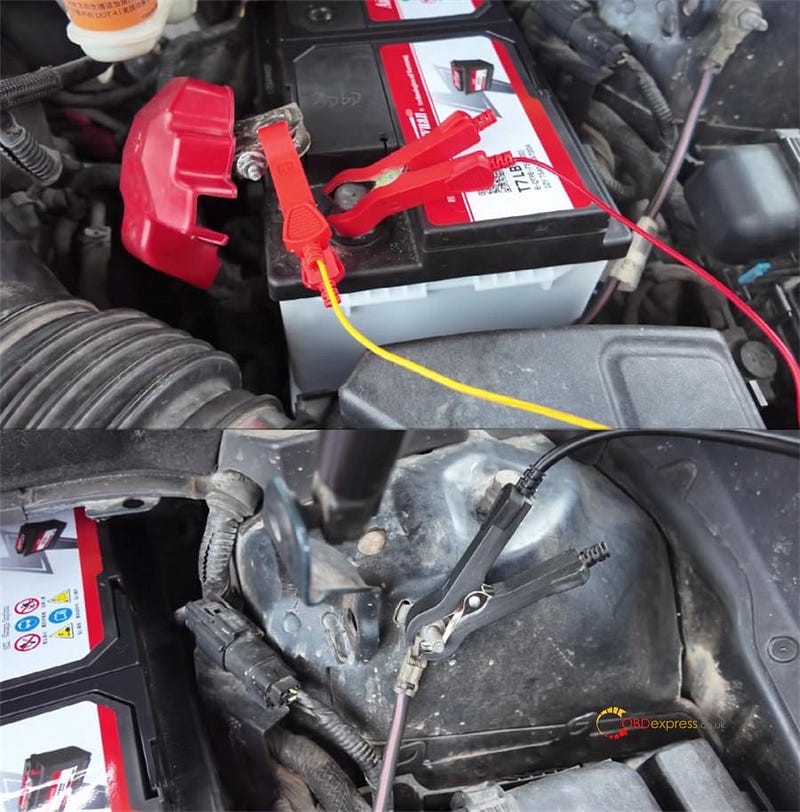

Connect Lonsdor Ford AKL Cable following the wiring diagram, and connect K518 Pro key programmer to the OBD port
Disconnect the negative battery terminal. When prompted on-screen, reconnect the terminal

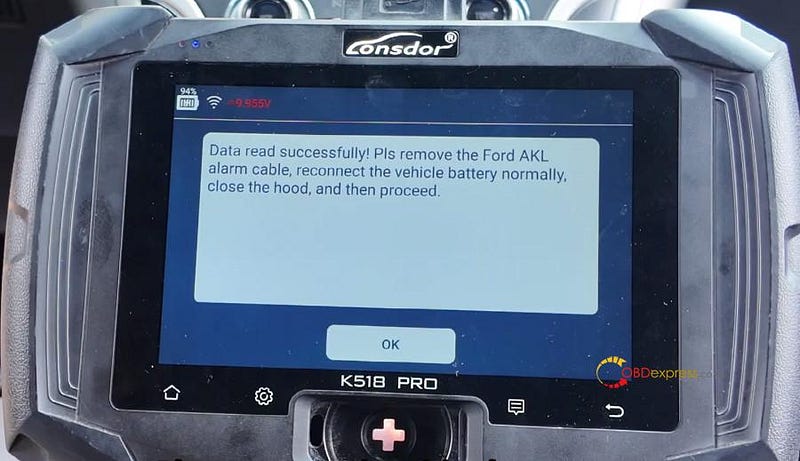

After Lonsdor K518 Pro completes backing up the IMMO data, remove the bypass cable and reconnect the original harness
Step 3: Run Security Calculation and Adapt Keys

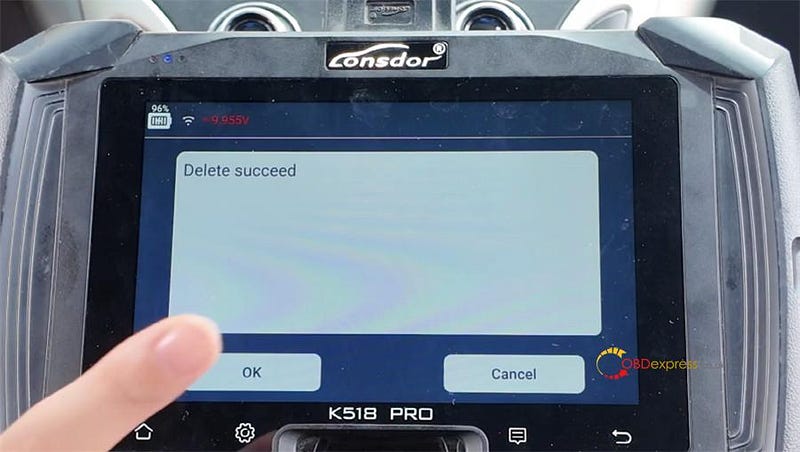

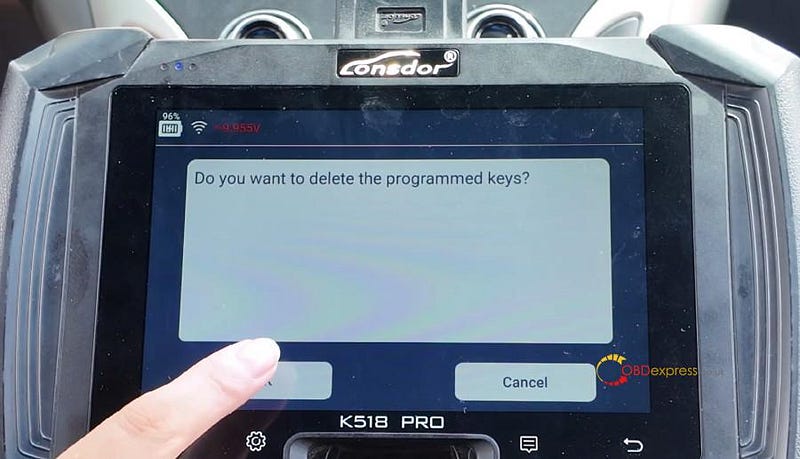

Confirm harness restoration on screen. The device begins a 10-minute security calculation to reset existing key memory

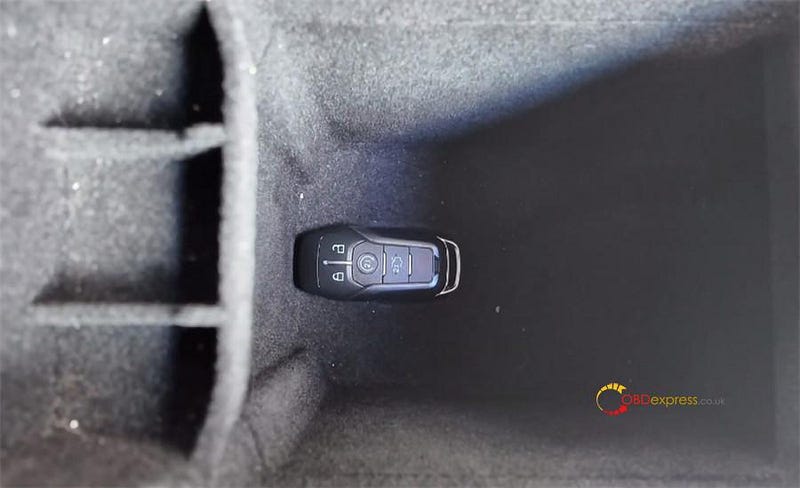

Insert Key 1 into the vehicle’s backup slot and press confirm.

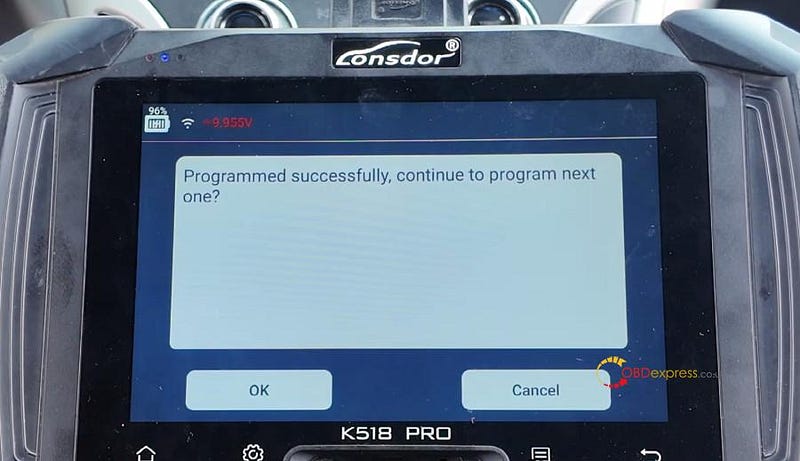

Insert Key 2 into the slot and press confirm
Operational Requirements & Verification
- Test engine start, remote locking, unlocking, and trunk control for both keys
- Maintain a stable power supply with an external battery charger throughout the process.
- Ford PATS requires a minimum of two registered keys to finalize programming.
