Formulaflash Update: ECU data cloud processing platform

 Formulaflash version updated to V1.0.4.0, this version updates important functions: ECU data cloud processing platform. The database is automatically updated, and the ticket system is supported to manually provide ECU data to users.

Note: ECU data cloud processing platform is currently in beta and can be used for free. The official version will be charged and the price is yet to be determined. (DTC/ DPF/ GPF/ OPF/ EGR/ EVAP/ AdBlue are free and available to all users in the beta version. By ticket system, engineers will manually process the data for you for free)

Formulaflash V1.0.4.0 DTC OFF New Update:
 — VW Audi Porsche Seat Skoda BOSCH :
MED(ME)17.1_17.5_17.6_17.1.X_17.1.XX_17.5.XXSeries, including:MED17.5.20,ME17.5.22,MED17.1、MED17.1.1、MED17.1.6、MED17.1.10、MED17.1.27、 MED17.1.61、MED17.5.2、 MED17.5.5、 MED17.5

 — Hyundai/ Kia Bosch:
ME,MED(G) 17.9.8 17.9.2 17.9.21 17.9.(11 12 13)(TC1724 TC1764 TC1762 TC1767)2MB 1.5MB

 — Volkswagen/ Audi/ Porsche:
SIMOS 8.1、SIMOS 8.2、SIMOS 8.3、SIMOS 8.4、SIMOS 8.5SIMOS 8.6、SIMOS 10、SIMOS 11、SIMOS 12、PCR2.1、SIMOS18.x、SI-MOS16.x、SIMOS19.x、Temic AL551、Temic AL552、Temic DQ200、Temic DQ250、Temic DQ380/DQ381、Temic DQ400、Temic DQ500

 — Mercedes-benz: SIM271DE/SIM271DE2.0、SIM271KE/SIM271KE2.0

 — Porsche: SDI6 SDI7 SDI8 SDI9VAG Bosch ME(D)17.5/17.5.2/17.5.20/17.5.21/17.5.22/17.5.25/17.5.5/17.5.6

 — Delphi: DCM7.1AP

 — Delphi China:
MT62 MT62.1 MT62.3 SPC5634 1.5MB、MT80 TC1762、MT92/MT92.1/MT92.1E TC265 2.5MB、MT95.1、MT20U/MT20U2/MT22U/MT22U2 256KB(METAL CASING)德尔福 MT22.3 MT22.5 SPC563M64 1.5MB、MT22.1 512KB、MT22.1 768KB、MT22.1.1 256KB、MT20U 1
EDC17C55、EDC17C81、EDC17C63、EDC17C53、EDC17C83 TC1793 4M

 — Bosch china:
ME17.8.8 TC1728、MED17.8.10 TC1728、MED17.8.2 TC1767,MG1US008 UD8 TC277 4MB,MG1US708 080 TC387 10MB,MG1UA008 UP8 SPC574 2.5MB
BMW MSV90、MSV80、MSV70、MSD80/81/85/87

 — Delco: E83、E39、E80

 — Delphi China: DCM6.2 、DCM6.2AP、DCM3.2、 DCM3.2AP、DCM3.7、DCM3.7AP

 — China AECS: FC-50(BETA) 、FC-51(BETA)

 — Lindian: LEC4AP 1.5MB、LEC4AF

 — Geely: 01609492(Easy U2)

 — Wuling: SIM2K-D51、SIM2K-51.4、SCE60、SGMW 1.2LN12(Easy U2.5) SGMW 1.5L B15 (Easy U2W)SGMW 1.5L N15A (Easy U3.6)SGMW 1.5L N15T(EaSy U3D/U3E

 — Bosch CHINA: MD1CS089 8MB、 MD1CC878 6MB、 MD1CE108 6MB

Formulaflash V1.0.4.0 New Protocols:
-DELPHI DCM7.1AP SERIES EEPROM DATA READ AND WRITE
-PORSCHE SDI6, SDI7, SDI8 BENCH READ AND WRITECKS+ IDLE SPEED ADJUSTMENTBAIC 1.5L R15C1(AECS FC-34)
-CHANGAN 1.2LLJ469Q(AECS FC-34)CHANGAN 15LDAM15KL(AECS FC-34)
-DONGFENG 1.5L L4A15Q6(AECS FC-34)-DONGFENG/FENGXING 1.5T 4J15T(AECS FC-34)
-DONGFENG/ FENGXING 1.6L4A92FR(AECS FC-34)-JAC 1.6L DAM16KL/HFC4GB3(AECS FC-34)
-JAC 1.8L, 2.0L,2.0TLJ4A18Q6/LJ481Q/HFC4NA3(AECS FC-34/FC-51)
-JINBEI/ SWM/ BRILLIANCE 1.5L SWC15M(AECS FC-34)
-JINLU/INLONG 2.0L LJ481(AECS FC-34)
-KING LONG/JINLONG 1.8L LJ4A18(AECS FC-34)
-LDV/SAIC 1.5LLJ4A15(AECS FC-34)
-SGMW 1.8L,2.0LLJ479Q6/LJM20B(AECSFC-34/FC-50)
-SHANDONG KAMA 1.6L DAM16KR(AECS FC-34)
-XIAMEN GOLDEN DRAGON 1.8LLJ4A18(AECS FC-34)
-GEELY 01609492 1(EASY U2)
-SGMW 1.2L N12 (EASY U2.5)-SGMW 1.5L B15 (EASY U2W)-SGMW 1.5L N15A (EASY U3.6)
-SGMW 1.5L N15T (EASY U3D/U3E)

www.obdexpress.co.uk

How to Program Xhorse XTPMS Sensors: TPMS Learning Method

 Upgrade your tire pressure monitoring system (TPMS) with the Xhorse Universal Programmable XTPMS Sensor — a high-quality, reliable replacement designed for seamless compatibility with most vehicles.

Why Choose Xhorse XTPMS Sensor?

• Wide Compatibility — Works with 98% of vehicles equipped with TPMS, ensuring a perfect fit for your car.
• Durable & Reliable — Made from automotive-grade materials for precision performance and long-lasting durability.
• Dual Frequency Support — Compatible with 315MHz and 433MHz systems.
• Long Battery Life — Features a high-capacity, heat-resistant battery that lasts 4–6 years.
• Adjustable Design — Flexible installation to fit different wheel hubs effortlessly.
• Easy Reprogramming — Works with KEY TOOL MAX PRO, KEY TOOL MIDI, KEY TOOL PLUS + MINI TPMS TOOL/TPMS ADAPTER, and App + MINI TPMS TOOL.

Perfect for Mechanics & Car Owners

Whether you’re a professional technician or a car enthusiast, this Universal TPMS Sensor ensures accurate tire pressure monitoring, enhancing safety and performance.

How to Use the Xhorse XTPMS Sensor?

The Xhorse XDTPM1EN XTPMS is a brand-new programmable dual-frequency TPMS sensor that covers 98% of vehicle models and features a long-lasting battery (4–6 years). If you’re new to TPMS sensors or unsure how to use this tool, this guide will walk you through the learning method for programming the sensor.

Two Methods to Replace TPMS Sensors

1. Copying — Recommended if you know the original sensor ID or if the vehicle supports OBD communication. This method is faster and simpler.
2. Learning — Used when the original sensor ID is unavailable. This involves generating new IDs and programming them to the vehicle.

*This guide focuses on the Learning Method.

Step-by-Step Learning Process (Using Ford Transit as an Example)

Tools Needed:

• Key Tool Max Pro (with TPMS function enabled via free upgrade)

Steps:

Generate Sensor IDs

• Access TPMS function on the Key Tool Max Pro.
• Select Ford Transit and the correct year.
• Choose "Program" > "Automatic Creation".
• Hold the tool close to the sensor and confirm to start programming.
• The tool will generate four random IDs for the sensors.

Install the New Sensors

• Mount the programmed sensors on the wheel hubs.

Enter Learning Mode

• Turn off the ignition.
• Press the brake for 1 second, then release.
• Turn on the ignition.
• Repeat this three times.
• Next, press the brake for 1 second, release, turn off ignition, then turn it on.
• Repeat three times.
• A horn sound and dashboard message ("Please calibrate the left front wheel") confirm successful entry into learning mode.

Activate Sensors

• Place the Key Tool Max Pro near each tire in this order: Left Front → Right Front → Right Rear → Left Rear
• Tap "Activate" for each sensor.
• The vehicle will beep after each successful activation.
• Once all four tires are activated, the dashboard will display "Learning Complete."

Important Notes

• Time-sensitive steps — Operate quickly to avoid failure.
• Remove interference — Keep other sensors or broken TPMS units at least 10 meters away.
• Automatic sync — Some vehicles require driving for a short time to finalize the data sync.

Which Method Should You Choose?

• Use Copying if you have the original sensor ID or OBD support (faster and easier).
• Use Learning if the original ID is unavailable.

The Xhorse XTPMS sensor is a versatile, reliable, and easy-to-use solution for TPMS replacement. By following these steps, you can efficiently program new sensors even without the original IDs.

Follow us for more TPMS tips and tutorials!

www.obdexpress.co.uk

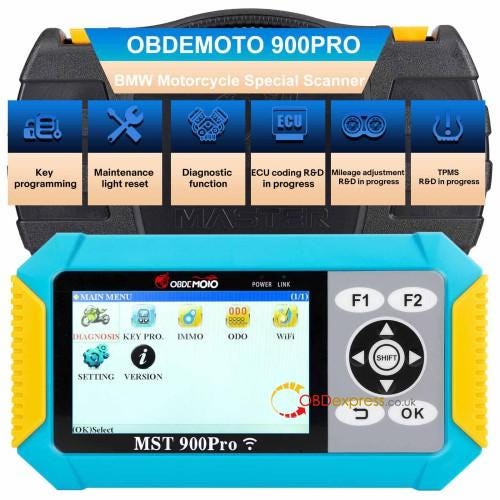

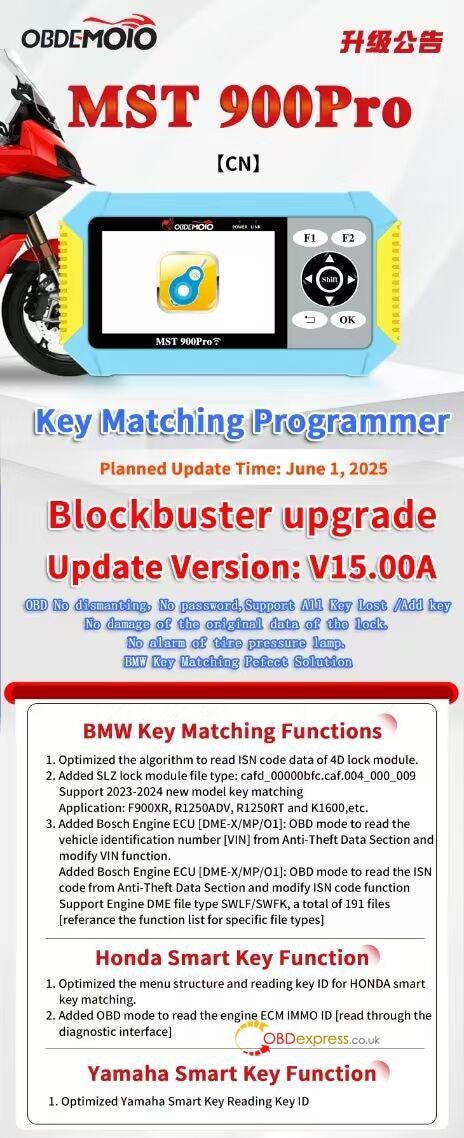

OBDEMOTO 900PRO V15.00A Upgrade: Add 2023-2024 BMW Models

 The latest OBDEMOTO 900PRO Key Matching Programmer V15.00A delivers a revolutionary upgrade for automotive locksmiths, dealerships, and key programmers. This update ensures seamless OBD key programming without dismantling, passwords, or damaging original lock data. It supports All Key Lost (AKL) and Add Key functions while preventing tire pressure lamp alarms — making it the perfect BMW key matching solution.

Planned Update Release: June 1, 2025
Version: V15.00A

BMW Key Matching Enhancements

Advanced ISN Code Reading

• Optimized algorithm for reading 4D lock module ISN codes with higher accuracy.
• Supports 2023–2024 BMW models, including: F900XR, R1250ADV, R1250RT, K1600, and more.

Expanded SLZ Lock Module Support

• Added new file type: cafd_00000bfc.caf.004_000_009 for enhanced compatibility.

Bosch Engine ECU (DME) Functions

• OBD Mode VIN & ISN Code Management:
• Read VIN from Anti-Theft Data Section.
• Modify VIN and ISN directly via OBD.
• Supports 191 DME file types (SWLF/SWFK).

Refer to: OBDEMOTO 900PRO BMW Key OBD Matching Function Table

Honda Smart Key Improvements

• Optimized Menu Structure for faster navigation.
• OBD Mode ECM IMMO ID Reading — Retrieve engine immobilizer ID via diagnostic interface.

Yamaha Smart Key Upgrade

• Faster Key ID Reading with improved efficiency.

Why Upgrade to V15.00A?

- No Dismantling Required — Full OBD functionality.
- No Data Corruption — Original lock data remains intact.
- Wider Vehicle Coverage — Latest BMW, Honda, and Yamaha models supported.
- Enhanced Security Features — No tire pressure lamp alarms triggered.

Get the Upgrade Now!

Don’t miss the June 1, 2025 release — enhance your key programming toolkit with OBDEMOTO 900PRO V15.00A for unmatched performance and compatibility.

www.obdexpress.co.uk

Yanhua Module 39 Installation Guide for Benz HU7 Instrument

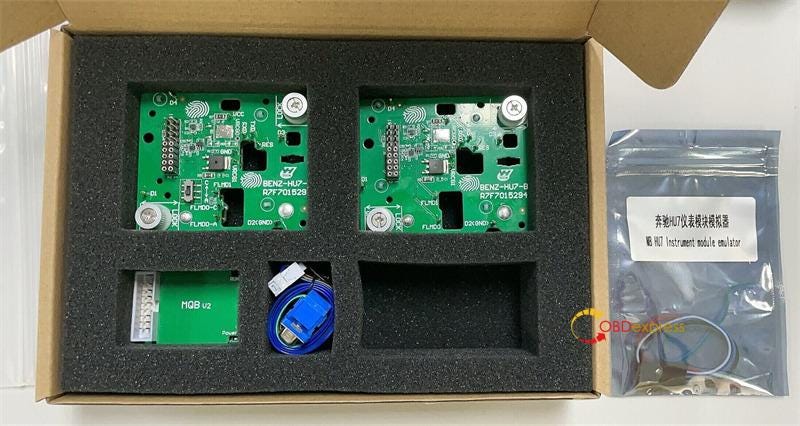

 Yanhua ACDP Module 39 is equipped with two kinds of interface boards, one MQB V2 Adapter, and one MB HU7 Instrument Module Emulator. This guide will walk you through the installation process of the interface board and emulator for Mercedes-Benz HU7 instrument module (A206/A223/A 177) with chip model R7F7015293/ R7F7015294.

PART 1: Install interface board for mileage correction

PART 2: Install emulator after mileage correction

PART 1: Install interface board for mileage correction

How to choose Yanhua Module 39 Interface Board for different instrument types?

1.Yanhua BENZ-HU7-A R7F7015293 Interface Board:

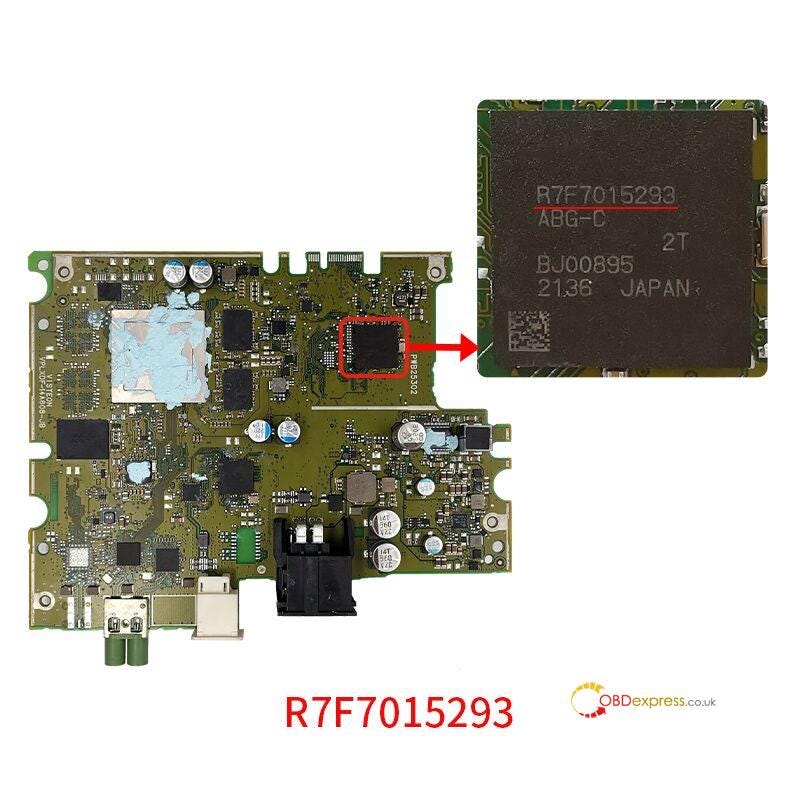

For BENZ HU7 A223, A206, A177 dashboard types with R7F7015293 chip below.

• For BENZ HU7 A223, A206 dashboard types (set the DIP switch on the BENZ-HU7-A interface board to the A- end)

• For BENZ HU7 A177 dashboard type (set the DIP switch on the BENZ-HU7-A interface board to the C- end)

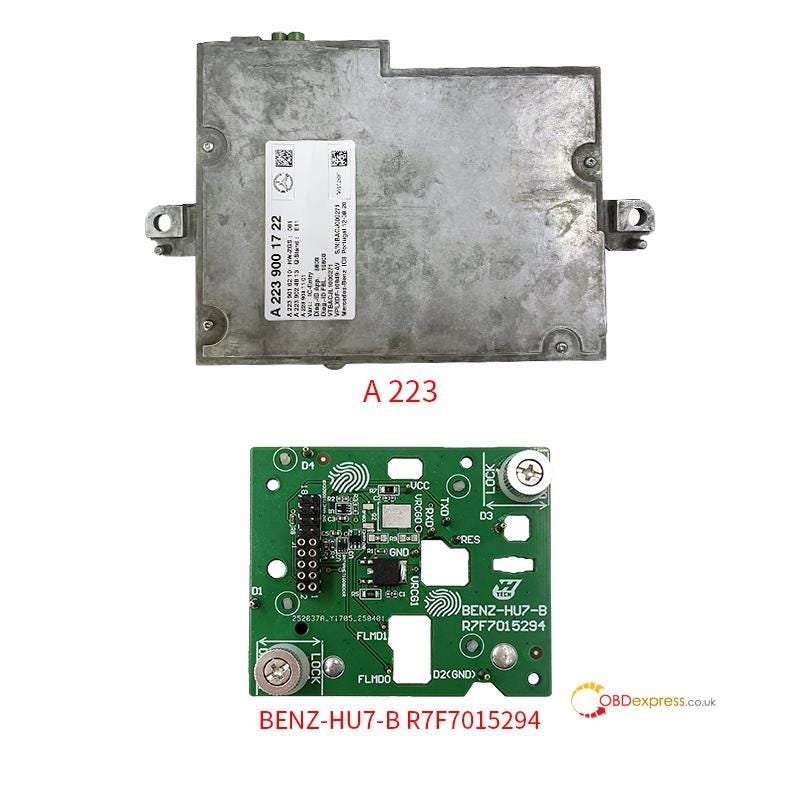

2.Yanhua BENZ-HU7-B R7F7015294 Interface Board:

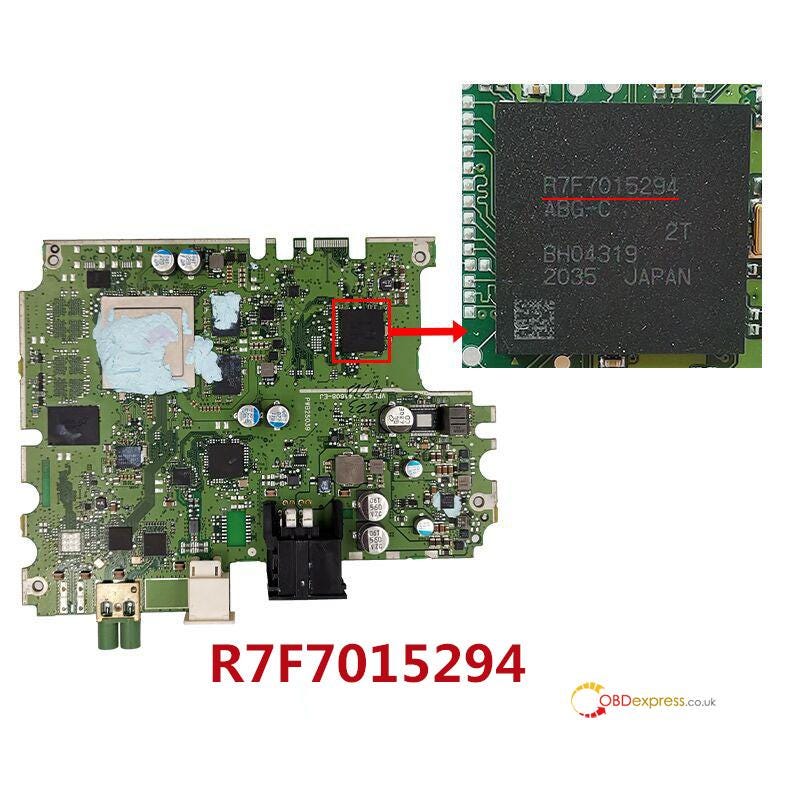

For BENZ HU7 A223 dashboard type with R7F7015294 chip below

Yanhua Module 39 Interface Board Installation Guide:

1.For Yanhua BENZ-HU7-A R7F7015293 Interface Board

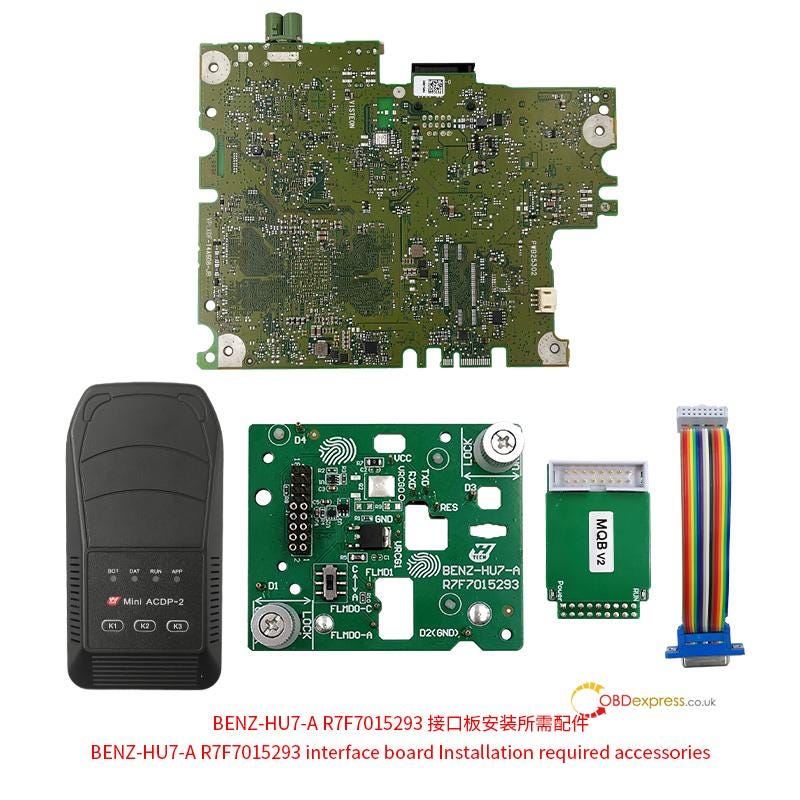

Requirement:

• Yanhua ACDP2
• BENZ-HU7-A R7F7015293 Interface Board
• MQB V2 Adapter
• 20 PIN cable
• BENZ HU7 A223/ A206 dashboard module with R7F7015293 chip

Step 1:

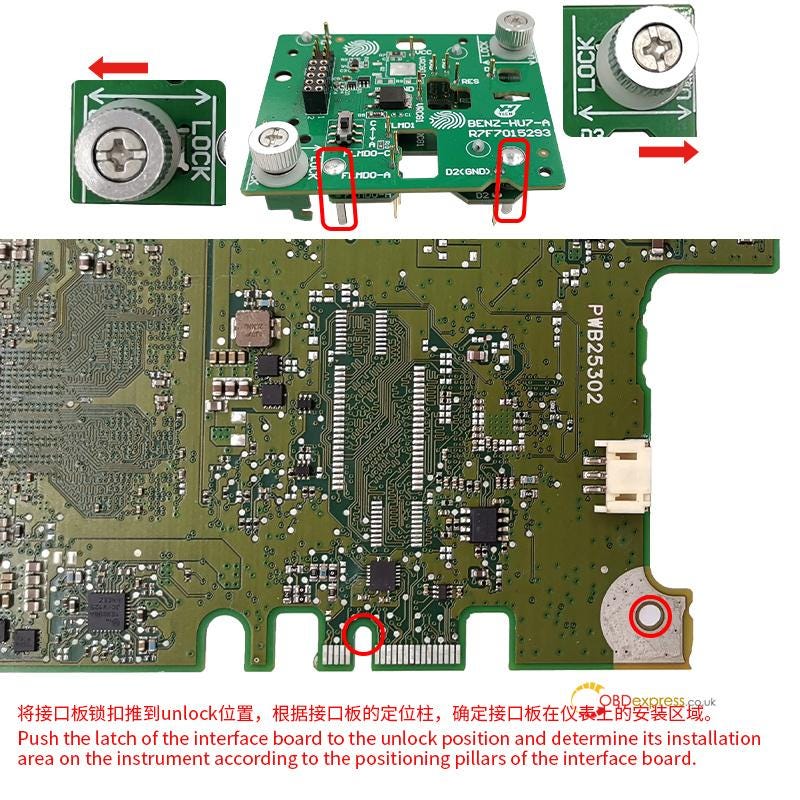

Push the latch on the interface board to the unlock position. Then, identify the correct installation area on the instrument based on the positioning pillars of the interface board.

Step 2:

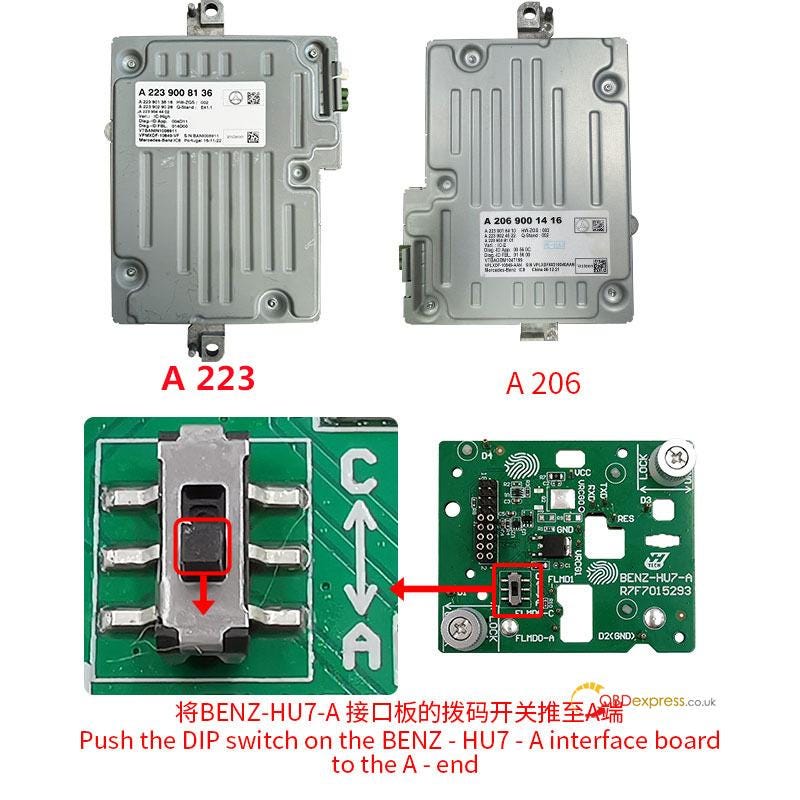

Move the DIP switch on the BENZ-HU7-A Interface Board to the A-end position.

Step 3:

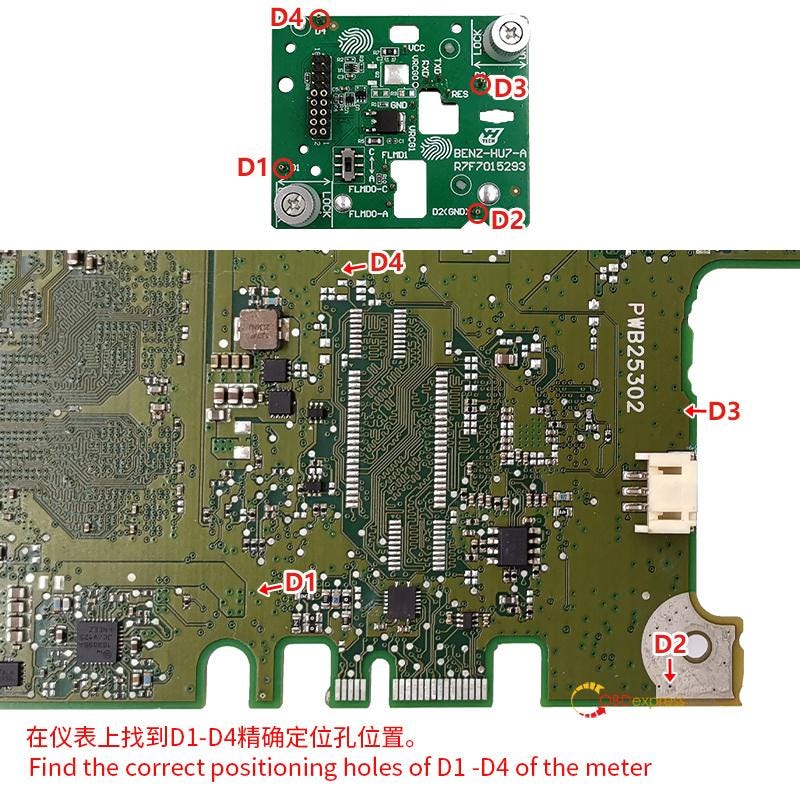

Locate the correct positioning holes for D1 — D4 on the meter.

Step 4:

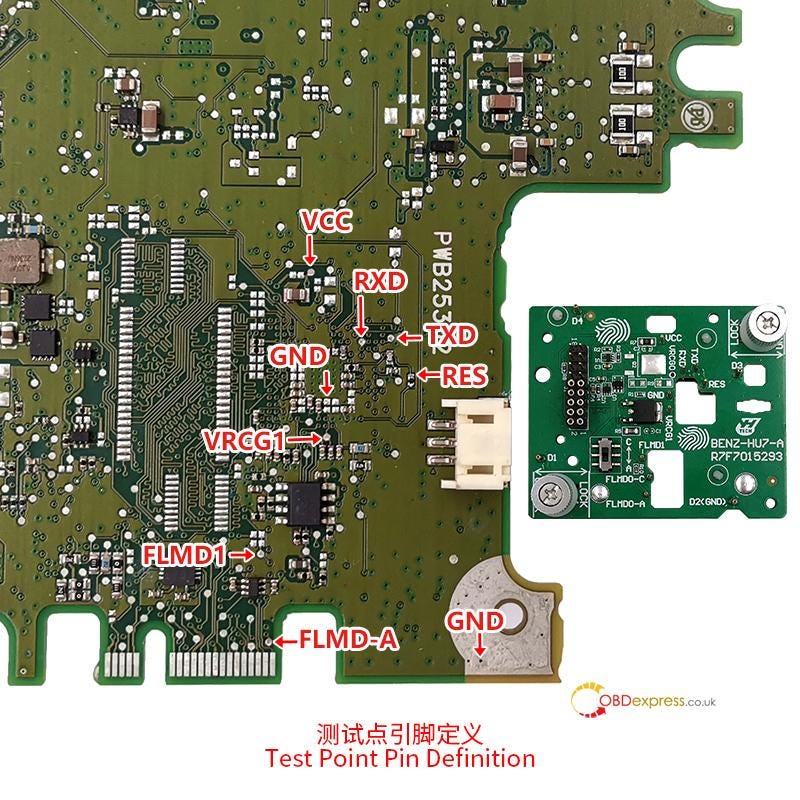

Verify the test point pin definitions.

Step 5:

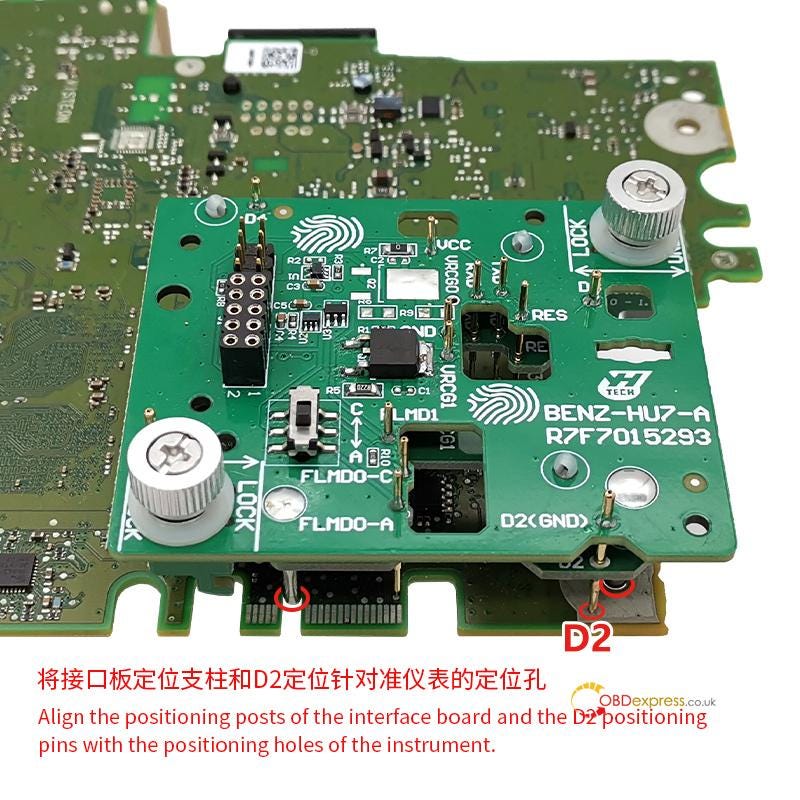

Align the positioning posts on the interface board and the D2 positioning pins with the corresponding positioning holes on the instrument.

Step 6:

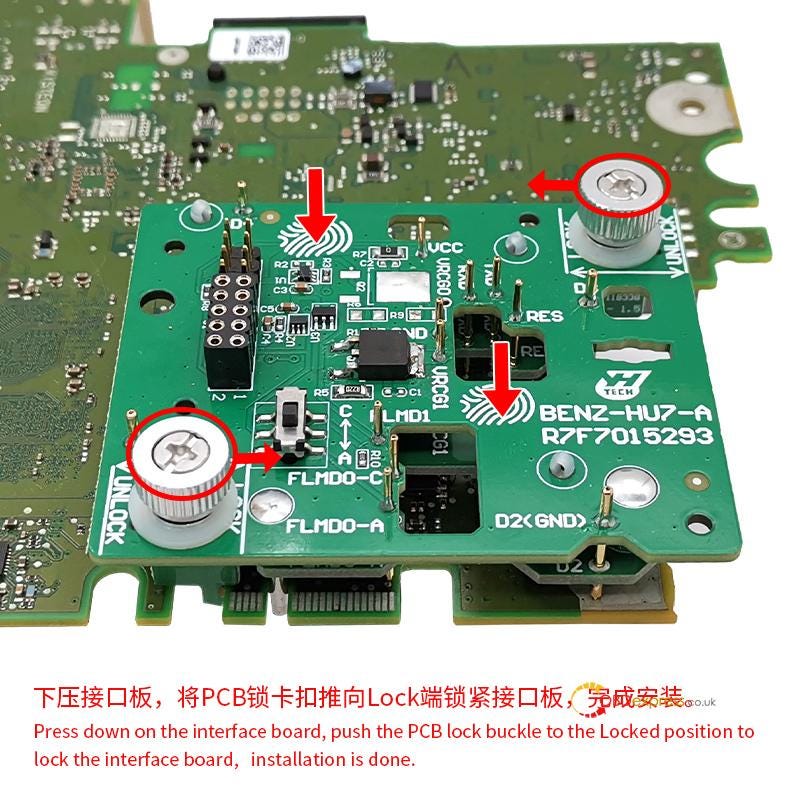

Press down on the interface board and then push the PCB lock buckle to the locked position to secure the interface board in place. The installation is now complete.

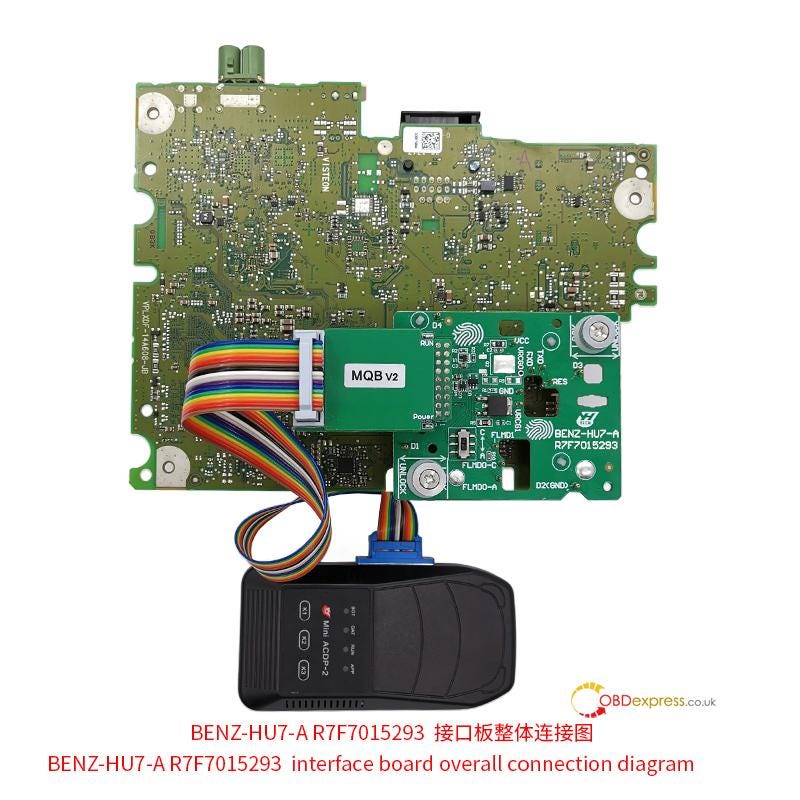

BENZ-HU7-A R7F7015293 Interface Board Overall Connection Diagram

Note:

The Benz HU7 A177 installation steps are the same as A223/ A206.

The only differences are step 2 and step 4.

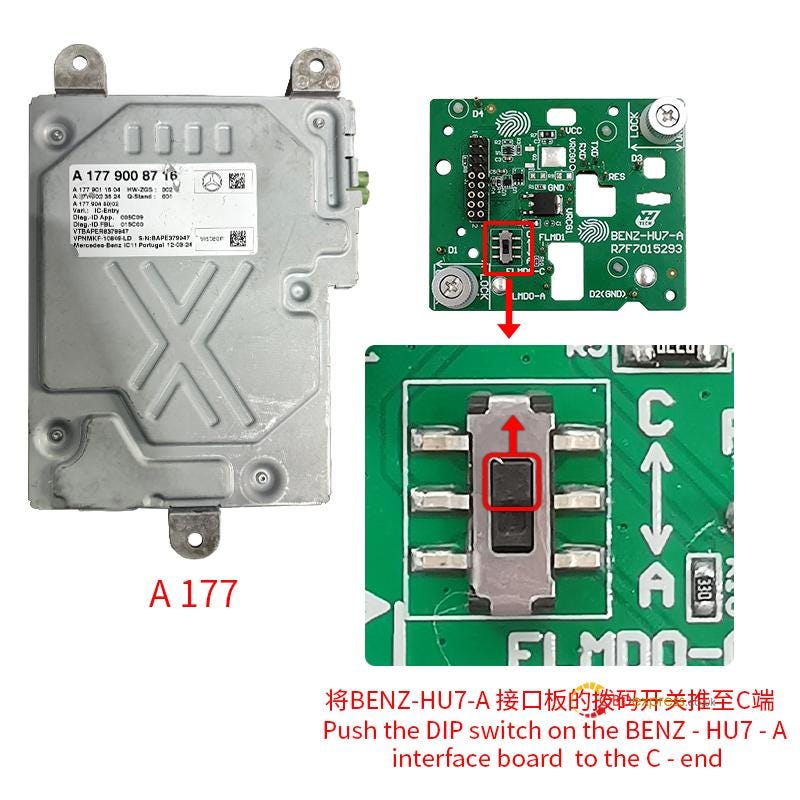

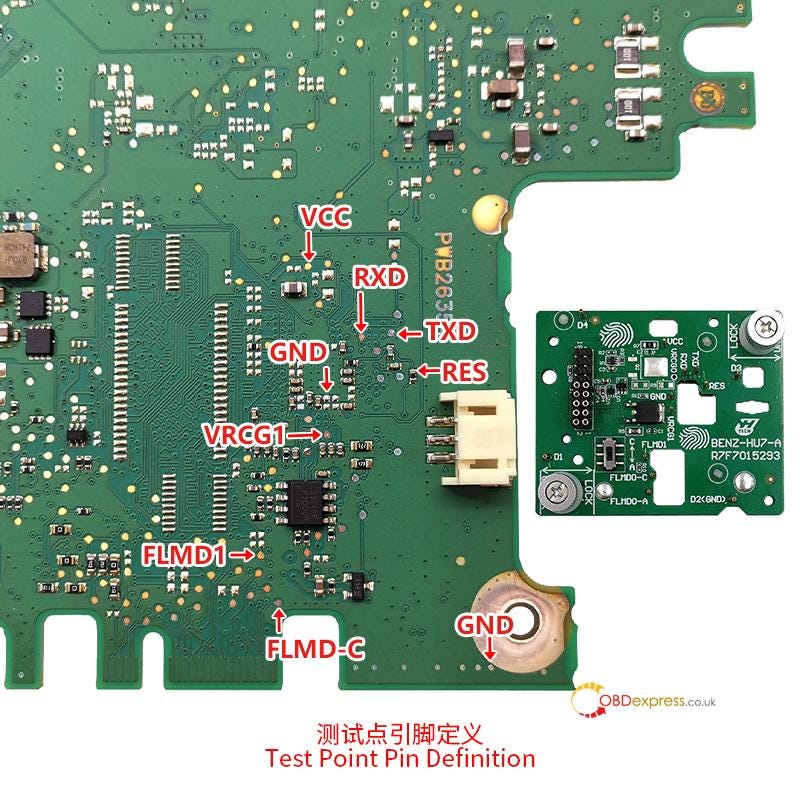

For A177 dashboard module:

2.For Yanhua BENZ-HU7- B R7F7015294 Interface Board

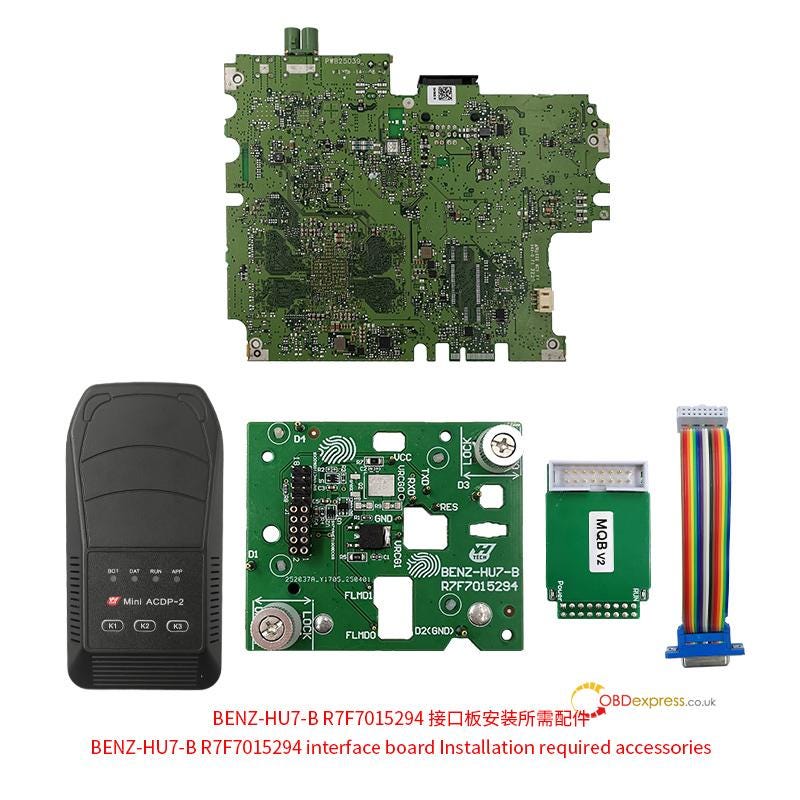

Requirement:

• Yanhua Mini ACDP2
• BENZ-HU7-B R7F7015294 Interface Board
• MQB V2 Adapter
• 20 PIN cable
• BENZ HU7 A223 dashboard module with R7F7015294 chip

Step 1:

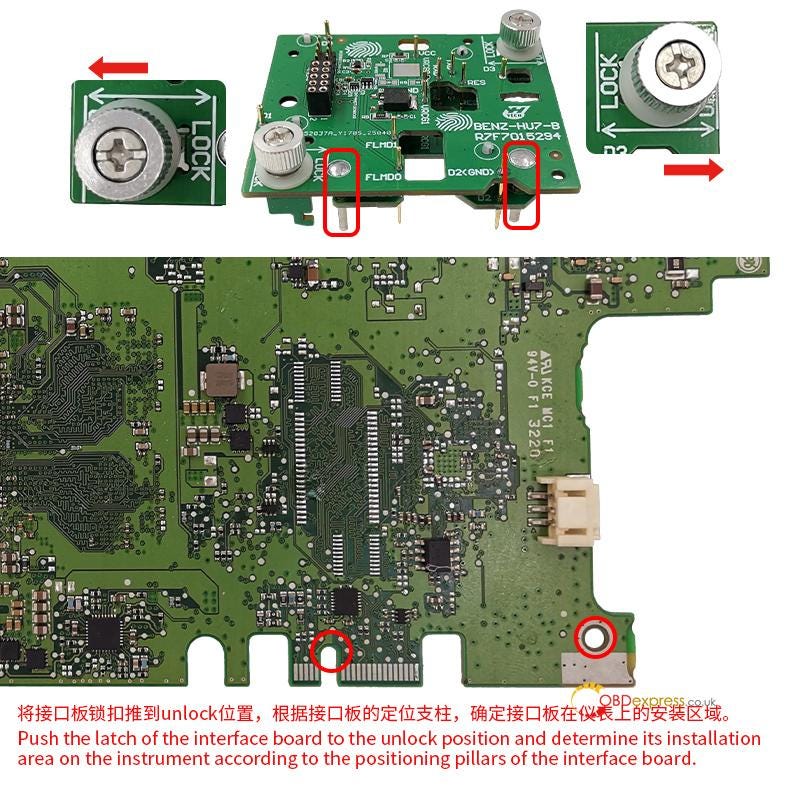

Push the latch of the interface board to the unlock position and determine its installation area on the instrument according to the positioning pillars of the interface board.

Step 2:

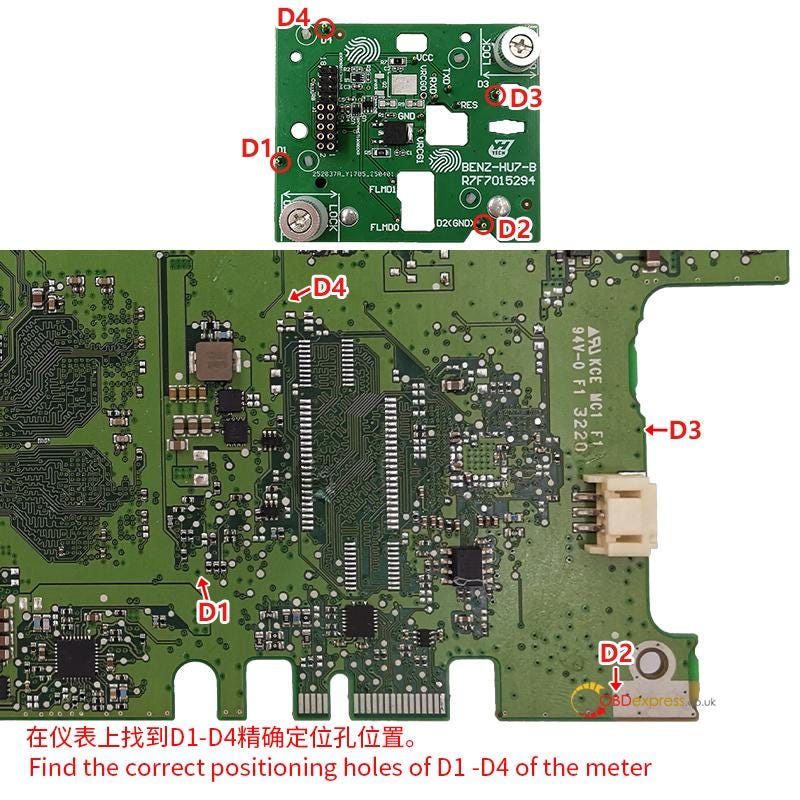

Find the correct positioning holes of D1 — D4 of the meter.

Step 3:

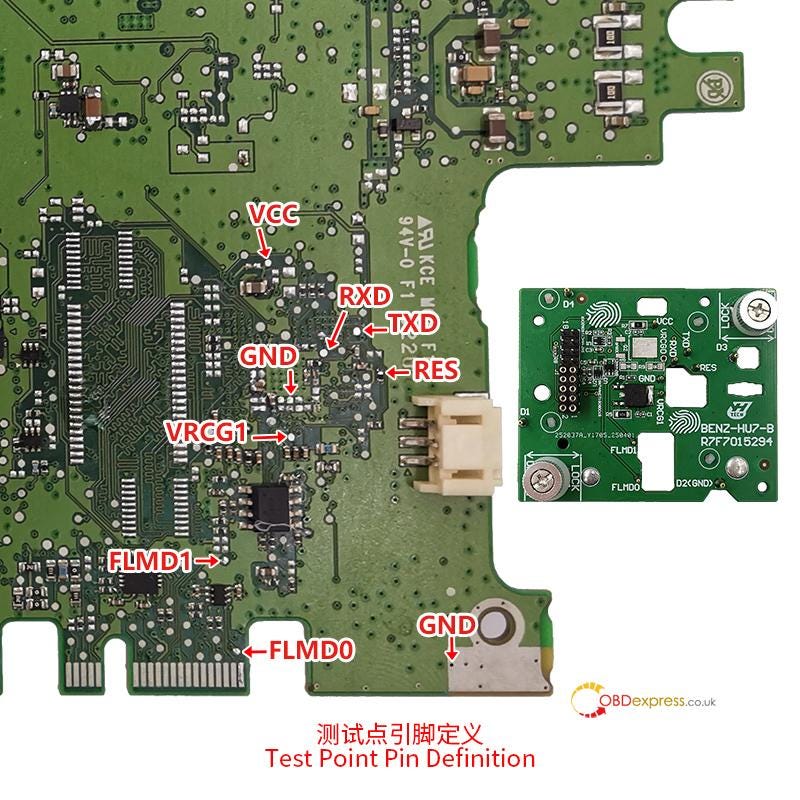

Check the test point pin definition

Step 4:

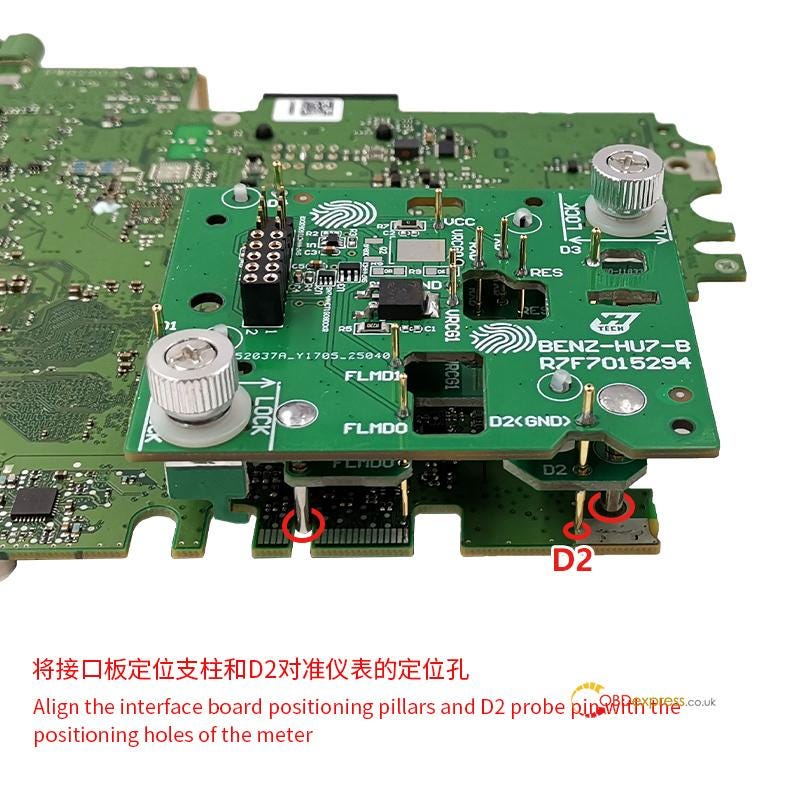

Align the positioning posts of the interface board and the D2 positioning pins with the positioning holes of the instrument.

Step 5:

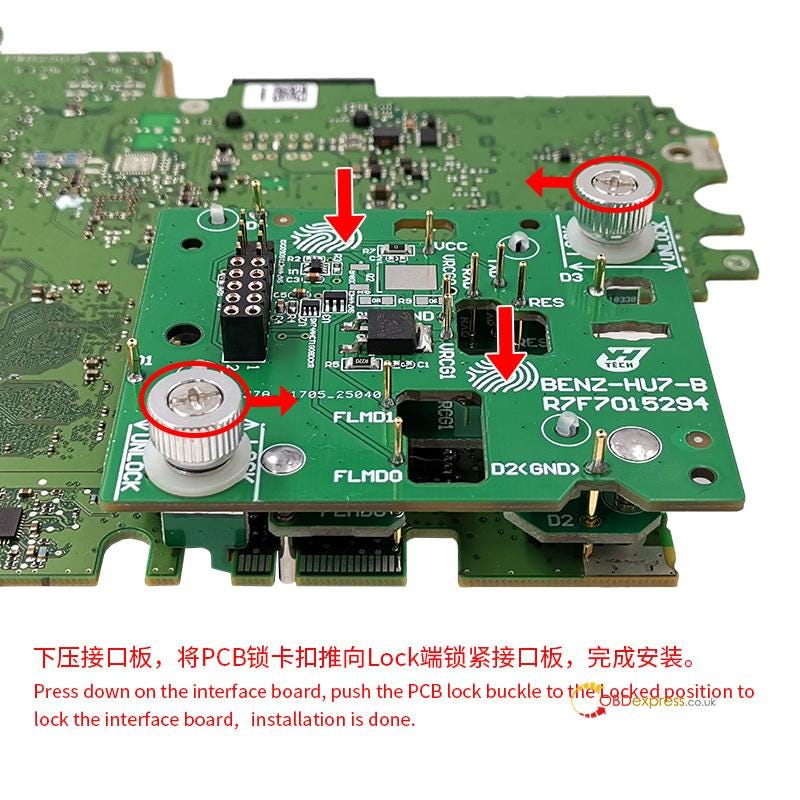

Press down on the interface board, push the PCB lock buckle to the Locked position to lock the interface board, installation is done.

PART 2: Install emulator after mileage correction

The Yanhua MB HU7 Instrument Module Emulator is designed to prevent black screen issues on the dashboard. It must be permanently soldered into the vehicle and is intended for one-time use — each vehicle requires its own emulator, and it cannot be reused.

After modifying the mileage by Mini ACDP2, proceed to solder the HU7 Emulator as shown below:

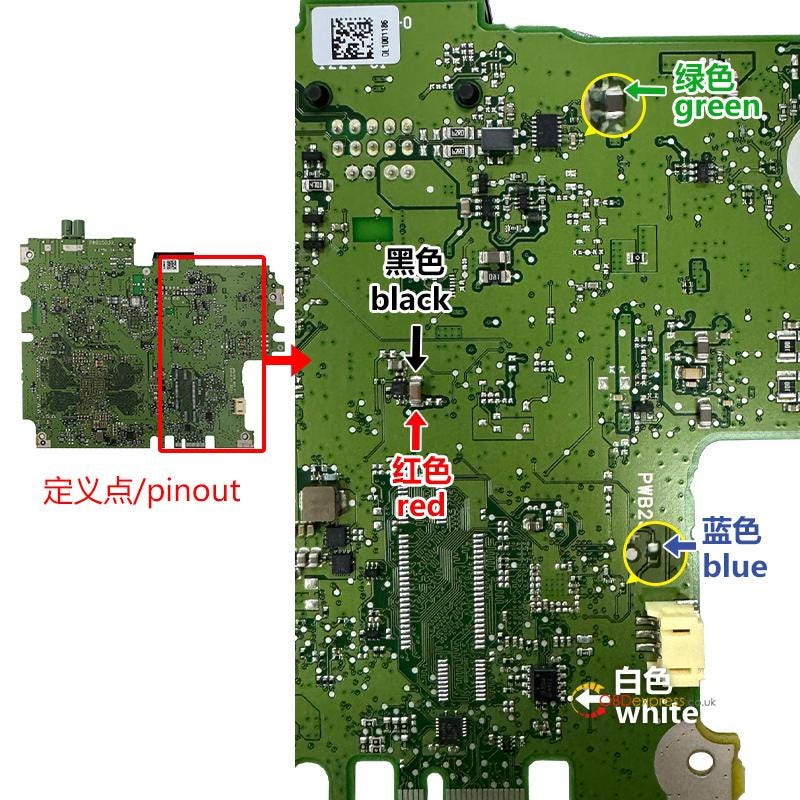

Check wire colors (black, red, green, blue, white) for correct pinouts.

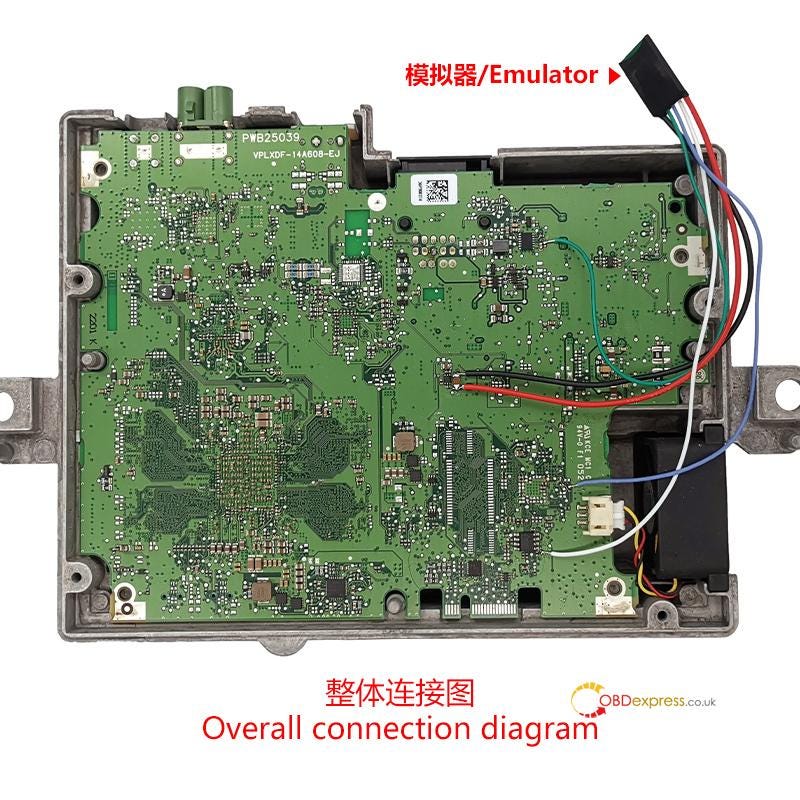

The overall connection diagram:

Learn more:

http://blog.obdexpress.co.uk/2025/06/06/yanhua-module-39-correct-benz-mb-hu7-instrument-mileage/

Yanhua Module 39 Correct Benz MB HU7 Instrument Mileage

 Yanhua Module 39 is specially designed for Mercedes-Benz MB HU7 instrument module (A206/A223/A177) equipped with chip model R7F7015293/R7F7015294 mileage correction on bench. It’s compatible with Yanhua ACDP1/ACDP2.

Which BENZ car models are supported?

• S-Class (W223)
• C-Class (W206 / S206 / V206 / X206)
• AMG (192 / X290)
• A-Class (W177)
• B-Class (W243 / W247)
• CLA (C118 / W118)
• CLE (A236 / C236)
• EQA (H243)
• EQB (X243)
• EQE (V294)
• EQS (V297)
• GLA (H247)
• GLB (X247)
• GLC (C254 / X254)
• GLE (V167)
• GLS (X167)
• CLS (W257)
• SL (232)

Which instrument modules are supported?

• A206
• A177
• A223

ACDP APP Menu Path:

Select Benz-> HU7 ODO Module (IC177/IC223) mileage correction-> R7F701529 (A177/A206/A223)

Select the corresponding interface board according to the dashboard type.

• BENZ-HU7-A Interface board (A point)
• BENZ-HU7-A Interface board (C point)
• BENZ-HU7-B Interface board

BENZ-HU7-A Interface board (A point)- for A223 and A206 with R7F7015293 chip

(need to push the DIP switch on the BENZ-HU7-A interface board to the A-end)

BENZ-HU7-A Interface board (C point)- for A177 with R7F7015293 chip

(need to push the DIP switch on the BENZ-HU7-A interface board to the C-end)

BENZ-HU7-B Interface board- for A223 with R7F7015294 chip

Reset mileage steps:

1.Identify info.

2.Reset mileage

Step 1: Modify ODO Module KM

Step 2: Install ODO Module emulator

Yanhua ACDP Module 39:

https://www.obdexpress.co.uk/wholesale/yanhua-acdp-module39-mb-hu7-mileage-correction.html

www.obdexpress.co.uk

VAPON VP100 BMW G Chassis Add Key Connection Guide

 Programming a new key for your BMW G chassis model with the VAPON VP100 is a straightforward process. Follow these steps to ensure a successful key addition:

Step 1: Backup BDC Code via OBD

Connect the VP100 Key Programmer to the vehicle’s OBD port to retrieve the BDC (Body Domain Controller) code.

Step 2: Pre-Process the BDC2 Module

• Remove the BDC2 module from the vehicle.
• Use the VP100 adapter for pre-processing (refer to the wiring diagram and tutorial).

Step 3: Reinstall BDC2 & Generate Dealer Key

• Reinstall the BDC2 module back into the vehicle.
• Generate the dealer key using the VP100 tool.

Step 4: Key Matching & Verification

• Place the new key near the induction coil (typically on the right side of the steering column).
• Hold the start button for 20 seconds until pairing is complete.
• Test the key to ensure proper functionality.

Read also

VAPON VP100: No Token Limit, Free License For BMW Models

http://blog.obdexpress.co.uk/2025/04/17/vpioo-vp100-no-token-limit-free-license-for-bmw-models/
